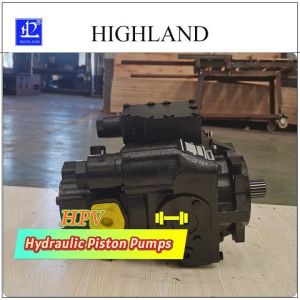

High Pressure 42Mpa Max Pressure Hydraulic Axial Flow Piston Pump
Product Description:
Highland 42Mpa Max pressure hydraulic piston pump is an essential
device in the hydraulic system. It utilizes the recurrent motion of
the plunger in the cylinder body to modify the magnitude of the
sealed working chamber, thereby accomplishing oil sucking and oil
pressure.
Axial flow piston pumps have remarkable characteristic such as
lofty rated pressure, sleek structure, elevated performance and
comfortable flow regulations. Such features make plunger pump
versatile in the areas that require solid pressure, voluminous flow
and adjustable flow rate.
Features:
- Highland hydraulic axial piston variable displacement pumps offer
ingenuity and ease of use.
- The bearings of the Variable Axial Piston pumps are all tapered
roller bearings which are able to handle heavy external axial
forces.
- Highland hydraulic pumps can be connected to additional pumps with
ease.
- When operated mechanically, the servo displacement feature is able
to control the angle of the swash plate and pump displacement.
- Release of the control handle will cause the swash plate to
immediately return to the zero position and reduce the flow to
zero.
- Piston pump has an impressive shaft oil seals performance that is
effective even at lower temperatures and high case pressure.
- The servo valve of the piston pump is able to accommodate function
regulators and remote control systems.
- Axial piston pumps are easy to maintain, disassemble and assemble
and all components are replaceable using standard tools.
Technical Parameters:
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| Weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HMF series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Applications:
Hydraulic piston pumps are widely used in many diverse fields. In
high-pressure, high-flow, high-power systems, where the flow needs
to be adjusted, hydraulic piston pumps are invaluable as they are
commonly used in agricultural machinery, construction machinery,
mining and metallurgical machinery, and in ships.
Moreover, hydraulic piston pumps are commonly used in petroleum
exploration and development, petrochemical, pharmaceutical, atomic
energy science, environmental sciences, process equipment and
experimental equipment.
FAQ:
- Q: What is the brand for your Hydraulic Piston Pumps?
A: The brand is HIGHLAND. - Q: What is the model number of your Hydraulic Piston Pumps?
A: The model number is HPV110. - Q: Where is your Hydraulic Piston Pumps manufactured?
A: It is manufactured in Dezhou, China. - Q: Does your Hydraulic Piston Pumps have a certification?
A: Yes, it has a PATENT CERTIFICATE and ISO certificate. - Q: What is the minimum order quantity for your Hydraulic Piston
Pumps?
A: The minimum order quantity is 5 Sets.
