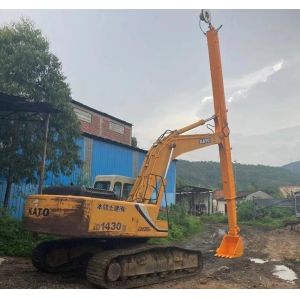

High-efficient Hydraulic Telescoping Excavator Boom Excavator
Grapple Telescopic Boom For Cat Hitachi Komatsu Kato Etc
Click Here To Get Our Catalogue ZH excavator boom arm.pdf
Description of Excavator TWO Sections Telescopic Arm
A two-section telescopic boom arm is a popular choice for various
industries, including construction, transportation, and forestry,
due to its versatile and compact design. This type of boom arm
consists of two telescoping sections that can be adjusted to
different heights and lengths.
Hydraulic telescoping excavator boom is frequently used in various
construction work.
Excavator grapple telescopic boom is our hot-sale.
| model | bucket | bucket cylinder | length | weight |
| 6T | 0.2 | 6T | 6 | 1400 |
| 10-12T | 0.2 | 6T | 10 | 2150 |
| 20-27T | 0.4 | 20T | 12 | 2600 |
| 30-36T | 1 | 30T | 12 | 3800 |
| 20-27T | 0.4-0.6 | 20T | 14 | 3000 |
| 20-27T | 0.8 | 30T | 14 | 3400 |
| 30-36T | 1 | 35T | 14 | 3800 |
| 30-36T | 0.8 | 30T | 14 | 3800 |
| 30-36T | 1 | 35T | 15 | 4200 |
| 24-28T | 0.8 | 30T | 15 | 3800 |
| 24-28T | 0.4 | 20T | 16 | 3500 |
| 30-36T | 0.8 | 22T | 16 | 4900 |
welcome to contact for models!
Features of Telescopic Arm for Excavator
(Robust structure)
1. The box is made of LG700 high strength material
2. Bearing part with multi-layer reinforced
3. The upgraded auxiliary rope design makes the pipeline smoother
while stretching
(Long service life)
1. The reel adopts enlarged spring piece
2. Adopt Strong bucket cylinder
(Avoid oil leakage)
1. The telescopic cylinder adopts double oil seals
2. Bucket cylinder hose was built-in to avoids oil leakage caused
by hose vibration
(Easy to maintain)
Lubrication system for sliders help support butter easily.
ZHONGHE MACHINERY'S ADVANTAGES
1. 14000㎡ Workshop
2. High-tech R&D Team
3. More Than 60 Skillful Workers
4. Deep Customization(Color, length, material, bucket width, extra
hydraulic tube, etc.)
5. Prompt Lead Time(7-20 days)
6. Online support within 24 hours.
CE certification & Utility model patent certificates
FAQ of Telescopic Excavator Boom
Q1. What is the length of the telescopic boom? Is it the total
length of the boom?
A1. The length of the two-stage telescopic boom refers to the
excavation depth. For example, the 14m telescopic boom refers to
the maximum excavation depth of 14m, not the boom length of 14m.
Q2. How to judge the length of telescopic boom that can be made for
different models?
A2. Because the length of the telescopic boom is directly related
to the length of the boom. We should ensure that the telescopic
boom will not touch the bridge when it is placed on the ground.
Q3. Do I need to modify the original machine when installing the
telescopic boom? Are there any precautions?
A3. The original machine needs three sets of pipes. We need to
replace the original one-way foot switch with a two-way foot switch
to achieve the telescopic function. The other operations are the
same. The more important thing is balance and safety. Try to avoid
the 90 degree operation between the cab and the track shoe.
Q4. Note and maintenance of telescopic arm
A4. 1st, telescopic arm does not allow inclined excavation. 2nd, it
can't dig hard things but only soft soil. 3rd, it is not allowed to
jack or hoist when the smallest arm is not fully retracted. 4th,
the end can't lift things more than 1 ton, which are easy to bend
the telescopic arm. If so, no warranty. 5th, telescopic boom shall
be greased every day, and the boom barrel shall be greased at least
once a week to keep the boom barrel full of butter.
