    Zirconium Aluminum Concrete Pump Pipeline Seamless Wear Resisting Pump Elbow

    Ask Lasest Price
    Brand Name : Ibeno
    Certification : ISO9001-2015
    Price : Negotiable
    Model Number : Concrete Pump Pipeline
    Delivery Time : 25-45 workdas
    Payment Terms : T/T
    Supply Ability : 100,000 ㎡/ year
    • Product Details
    • Company Profile

    Zirconium Aluminum Concrete Pump Pipeline Seamless Wear Resisting Pump Elbow

    Product Description

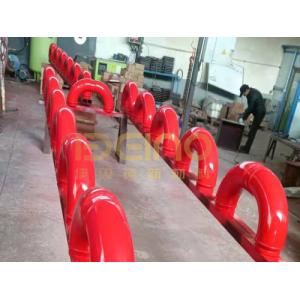

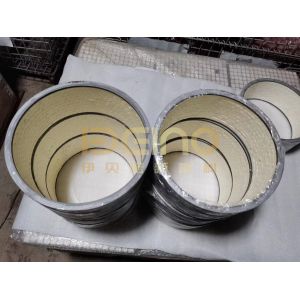

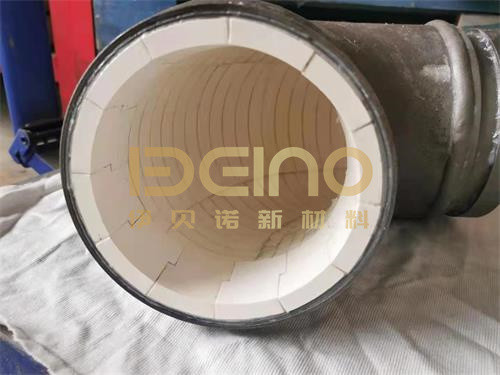

    The steel parts of concrete pump pipes produced by our company are seamless steel pipes, and the flanges at both ends are lined with zirconia ceramics, which improves the anti-wearability of heavy wear parts


    Ceramic pump tube model table

    Product model table (part)
    NOProduct nameSpecification
    1207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant)125A 90° R275 end elbow
    2207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant)125A 90° R190.5 end elbow
    3207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant)125A 90° R180 end elbow
    4207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant)125A 90° R275
    5207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant)125A 45° R275
    6207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant)125A 90° R190.5
    7207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant)125A 90° R180
    Note: The quality assurance of the conventional concrete (C25/30) at the boom position is 120,000 m3, and the quality assurance of the conventional concrete (C25/30) at the end position is 40,000 50,000 m3
    The above pipe models are only listed in part, we can also customize the special-shaped pipe

    Ceramic technical parameters

    ItemsSpecifications
    Al2O3≥75%
    Zirconia≥21%
    Density4.2 g/cm3
    Compressive Strength≥ 1400 Mpa
    Rockwell Hardness≥ 90 HRA
    Vickers Hardness≥ 1350 HV10
    Fracture Toughness (KIC)≥ 5.5 Mpa.m1/2
    Bending Strength≥ 350 Mpa
    Wear Volume≤ 0.009 cm3
    Tensile Strength (TSB)≥ 15 Mpa
    RubberNatural
    Natural≥450
    Elongation450%
    ItemsSpecifications
    Al2O3≥ 99%
    Density>3.83g/cm3
    HV10≥1300
    Rock Hardness HRA≥90
    Bending Strength MPa≥340
    Compression strength MPa≥1300
    Fracture Toughness KIc MPam 1/2≥4.2
    Volume wear≤0.01cm3

    Product certification and product testing

    concrete pump pipes are fully integrated into the ISO quality management system from product design, manufacturing to installation services. Every process is inspected by quality inspectors. Products that do not meet the standards are returned to the previous process for production, and the company will conduct sampling inspections on the finished products. , The finished product has passed the performance inspection before leaving the factory and has a certificate of conformity affixed.


    Perfect service system

    We are a professional manufacturer of wear resistant ceramic concrete pump pipes, providing you with high cost effective and competitive prices!
