    Stainless Steel Ceramic Lined Pipe Elbows Abrasion Resistance

    Ask Lasest Price
    Brand Name : Ibeno
    Certification : ISO9001-2015
    Price : Negotiable
    Model Number : Wear Resistant Ceramic Pipe
    Delivery Time : 25-45 workdas
    Payment Terms : T/T
    Supply Ability : 100,000 ㎡/ year
    • Product Details
    • Company Profile

    Stainless Steel Ceramic Lined Pipe Elbows Abrasion Resistance

    Product Description

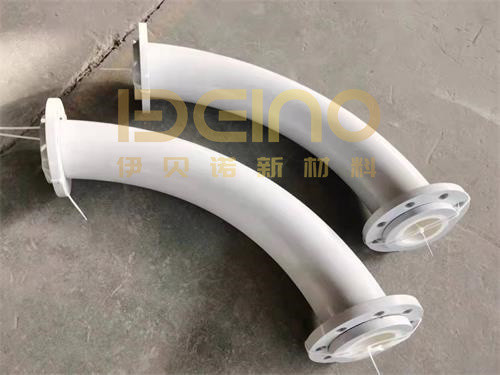

    The ceramic lined elbow is composed of steel parts, viscose, and ceramics. The steel parts are formed by 20# integral hot bending (different from centrifugal casting pipe welding or coil forming), and the ceramics are bonded to the steel parts by temperature-resistant viscose. The inner wall is installed with staggered arch joints and cured to form a firm anti-wear layer.


    Ceramic technical parameters

    ItemsSpecifications
    Content of alumina≥92%
    Density≥3.6 g/cm3
    Rockwell A hardness≥82HRA
    Impact strength≥1200 MPA
    Fracture toughness≥3.8MPa·m1/2
    Vickers hardness≥1150HV10
    Bending Strength≥290MPa

    Products Feature

    The ceramic lined elbow alumina ceramic sheet is a special corundum ceramic made of AL2O3 as the main raw material, rare metal oxide as a flux, and calcined at a high temperature of 1700 degrees. It is formed by dry pressing and isostatic pressing and firing at high temperatures. Rockwell hardness is HRA88, which has the characteristics of abrasion resistance, impact resistance, and convenient construction, which can effectively extend the service life of various equipment. Common specifications for ceramic lined elbow alumina ceramic sheet: 10*10*3 10, 17.5*17.5*3 15, 20*20*4 20, and can also be customized according to customer requirements.


    Product Application

    Ceramic lining elbows are mainly widely used in steel, thermal power, cement, ports, coal, mining, chemical, concrete engineering machinery, chemical, smelting, lithium battery, and other industries


    Product certification and product testing

    Product design, manufacturing, and installation services are fully integrated into the ISO quality management system. Every process has a quality inspector for inspection. The company will sample the finished products and pass the performance inspection before leaving the factory.


    Why did you choose us?
    We offer a variety of pipeline sizes and ceramic lining thicknesses, which can be customized according to the drawings to meet the on-site needs of customers. As a factory, we can provide competitive prices and fast delivery times.


    Factory introduction

    The company's products have high strength, high hardness, wear resistance, and corrosion resistance. The products are exported to Japan, South Korea, Germany, the United States, the United Kingdom, Australia and other countries. The products are divided into the following series

    1. Wear resistant ceramic sheet

    2. Wear resistant ceramic liner

    3. Wear resistant ceramic composite pipelining

    4. Wear a resistant ceramic elbow (Lithium battery elbow)

    5. Wear resistant ceramic roller encapsulation

    6. The whole equipment is lined with ceramics

    7. Accessories on construction machinery ceramic pump tube, ceramic transition sleeve


    What are Ceramic Lined Elbows?

    Ceramic Lined Elbows are a type of pipe fitting used in industries that require the transport of materials that are abrasive and corrosive. They are used in place of traditional steel elbows to provide additional protection against wear and abrasion over a longer period. Our Ceramic Lined Elbows are made by incorporating advanced ceramic coatings inside the elbows. The ceramic is bonded to the surface of the steel elbow, which provides additional protection against abrasion and wear.
