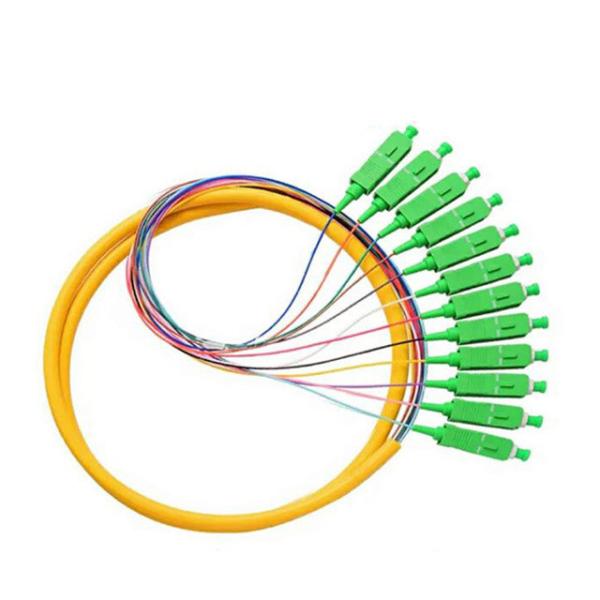

China Factory Single Mode Simplex Fiber Optic Patch Cord Jumper
Pigtail with FC LC Sc St Upc APC PC Connector
Technical parameters
| Characteristic | Item | Test condition | Single mode fiber | Multimode Fiber |
| Optical property | Insertion Loss (dB) | 1310nm(SM);850nm(MM) | <0.3dB | - |
| 1550nm(SM);1300nm(MM) |
| Return Loss (dB) | 1310nm(SM);850nm(MM) | - | >45dB(SM)
>35dB(MM) |
| 1550nm(SM);1300nm(MM) |
| Mechanical test | Vibration test | 10-60Hz, 1mm full amplitude | △IL<0.2dB | △RL<5dB |
| Plug service life | Above 1000times | △IL<0.2dB | △RL<5dB |
| Tensile strength | >50N | △IL<0.2dB | △RL<5dB |
| Environmental property | High temperature test | +85°C, 96hs | △IL<0.2dB | △RL<5dB |
| Cryogenic test | -40°C, 96hs | △IL<0.2dB | △RL<5dB |
| Damp heat test | +40°C,90-95%RH,96hs | △IL<0.2dB | △RL<5dB |
| Cable outer diameter | Ψ0.9mm,Ψ2.0mm or customer specified |
| Cable length | 1m,3m,5m,15m,25m,30m or customer specified |
| Fiber type | B1.3=G652D, B6A1=G657A1, B6A2=G657A2, A1=50/125, A1b=62.5/125, OM3=
Maxband*150, OM3=Maxband*300, OM4=Maxband*550, OM5=Maxband*550 |
| Branch count | 1-12 |
| Outer jacket material | PVC, LSZH |
| Outer jacket color | Refer to Chromatogram |
| Connector type | LC,SC,ST,FC |
| Polish type | UPC,APC |
| Marking &Package | Per customer's request or factory standard |
Product profile
Fiber optic pigtail is a piece of fiber optic cable with only one
fiber optic connector; it is typically used to link with fiber
optic equipment. The connector side is mainly in charge of the
connections while the other side is melted together with fiber
glasses to achieve minimum insertion loss.We provide a full range
of fiber optic pigtails for both single mode and multimode.Characterstic•Low insertion loss, high return loss.
•Excellent mechanical endurance.
•High credibility and stability.
•Good in repeatability and exchangeability.
•100% Insertion, Return Lossz End Face and Interference inspection.Application•Telcom and datacom application.
•Patch panels, wall boxes, ODFs and splice cassettes.
•Easy strip pigtails for on-site installation.
•Supports high-speed multi-channel video, data and voice services
in metropolitan and access networks. •ATM, SONET and WDM.| No. | 1 | 2 | 3 | 4 | 5 | 6 |
| Color | Blue | Orange | Green | Brown | Gray | White |
| No. | 7 | 8 | 9 | 10 | 11 | 12 |
| Color | Red | Black | Yellow | Violet | Pink | Aqua |
Jiangsu Dierite Optoelectronics Technology Co., Ltd. is a
professional optical fiber cable manufacturer with own R&D
center; marketing center and production base, located in Changzhou
Jiangsu China, close to Shanghai and Ningbo port. Our company is
committed to provide first-class solutions and OEM services for
operaton system integrators and Integrated wiring provider Products
cover indoor and outdoor fiber optic cable, fiber optic patch cord,
PLC splitter; adaptecattenuatocetc.
Dierite was established in 2010, now our workshop area is about
5000 square meters, and has more than 150 workers. We are also a
national high-tech enterprises with ISO 9001,CE/RoHS and many Utility Model Patent Certificates. Our factory
controls the quality constantly and strictly in order to give the
best products to the users.
Products have been widely used in telecommunications, broadband,
and network industry and are exported to Asia, North America, South
America, Europe and other places. As an original manufacturer; we
will accelerate the development of the global 5G era with the most
stringent quality and the most competitive price.
