    Surface Mount Fixed Ring U Shape NTC Thermistor Temperature Sensor 10K 3950 For Audio Amplifier

    Ask Lasest Price
    Brand Name : AMPFORT
    Model Number : CWF103F3950FB25RC
    Certification : ROHS
    Price : Negotiable
    Payment Terms : T/T,Paypal
    Supply Ability : 3000000pcs per month
    Delivery Time : 10 days
    • Product Details
    • Company Profile

    Surface Mount Fixed Ring U Shape NTC Thermistor Temperature Sensor 10K 3950 For Audio Amplifier

    Surface Mount Fixed Ring U Shape NTC Thermistor Temperature Sensor 10K 3950 For Audio Amplifier

    NTC thermal resistance can be assembled in a customized shell into NTC temperature sensors for various applicable product applications for measurement, detection, instructions, monitoring and control. The NTC temperature sensor probe component can be easily connected to any system or any system component to monitor or control the temperature. The choice of assembly depends on the application.

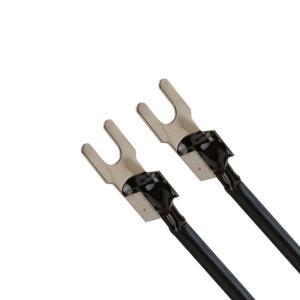

    The U -type plug -in NTC thermistor temperature sensor uses MF58 NTC thermistor resistance chip, with holes for easy installation, and has good moisture resistance. It has good stability, moisture resistance and coherence, high durability, and rapid response detection.

    The U -type plug -in NTC thermistor temperature sensor is mainly used in household appliances and power equipment. AMPFORT is a technology -based enterprise specializing in the research, development and production of NTC thermistor and temperature sensors. The main products include: NTC thermistor, NTC temperature sensor, NTC temperature probe, NTC temperature sensing line, NTC temperature metering line, micro -NTC custom design, etc. The products are widely used in household appliances, communications, electricity, medical equipment, testing instruments, and test instruments , Power and equipment, industrial electronic equipment and other fields.

    1. Overview


    NameNTC Temperature Sensor
    Operation Temperature Range-20~+105C
    Withstand voltage test3sec @ 1000V AC 3mA in air
    Insulation test100MOhm@500VDC
    LEAD WIRECP Wire
    HousingU Shape 3.5*15
    Tube/
    Standard/
    ThermistorR25=10KΩ±1% B25/50=3950K±1% Epoxy
    P/NCWF103F3950FB25RC

    Other


    Product NameManufacturer Clip Pipe Temperature Sensor NTC High Temperature Water Temp Probe
    NTC Thermistor5k/10k/20k/30k/50k/100k and etc.
    B value3435, 3470, 3950, 3970, 3977, 3380, 3470, 4066, 4070, etc
    HousingSUS304/ SUS316/ Brass/ ABS, can be customized
    Wire length1 meter/ 2 meters, can be customized
    EndBare end or connectors (JST, MOLEX, TE and etc)
    Working temp.-40~200C, can be customize as per customer's request
    ApplicationAir Conditioner, coffee machine, oven

    Tell us your requirements

    * The application of the NTC thermistor:__________

    * Working environment of NTC thermistor:________

    * Operation temperature range:___ºC to ___ºC

    * Any requirement about sensor probe material or dimension:______________

    * The R value:___K ohm ±___% at ___ºC,

    * The B value: B(____ºC/____ºC) = _____K ± ___%
