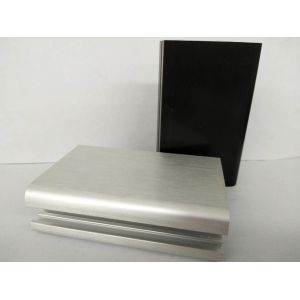

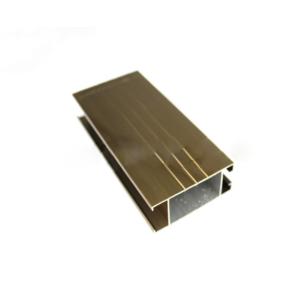

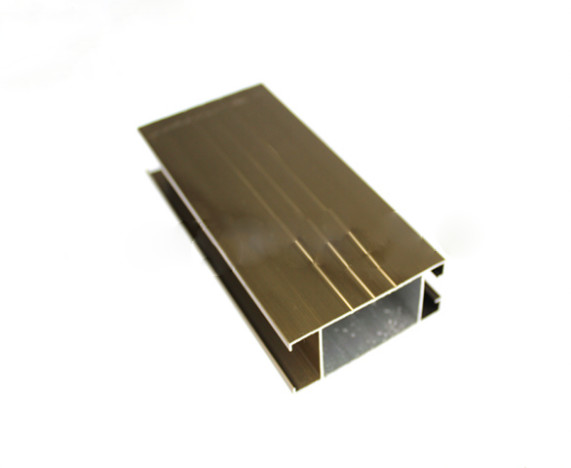

Natural Anodized Extruded Aluminum Electronics Enclosure For Goods Shelf

Natural anodized goods shelf extruded aluminium 6063 t5 profiles

Specifiaction:

Powder electrostatic spraying

Powder electrostatic spray gun head metal guide ring connected to high voltage anode, aluminum earthing form the positive, when compressed air to powder for powder from the barrel of the duct to the spray gun guide ring, the negative electric field and make the powder with negative charge, discharge in electrostatic force and compressed air, under the joint action of powder from the gun flew to adsorbed on the surface of aluminum and evenly, after heating, powder melt and flow flat to a uniform coating

Wood processing

Wood grain processing began to introduce in the late 1990s, mainly used for the surface treatment of interior decoration profiles. Wood processing mainly USES the transfer process, it is after powder electrostatic spraying qualified aluminum surface with a layer of printed with certain patterns (wood grain, marble) permeable membrane, and then pumping air into vacuum state, the osmosis membrane completely covered in aluminium profile surface, after heating, make the ink transfer on the permeable membrane, seeping into the powder coating, so that the aluminum surface formation and osmosis membrane on the appearance of the design is exactly the same. Wood processing is conducted on powder coating, therefore, preparation of powder coating and powder coating material production working procedure is exactly the same, just the powder used must be compatible with hot osmosis membrane, otherwise may not easily on the lines, and the film thickness should be controlled in 60 ~ 90 (including m.

The process flow of wood grain processing is:

Pretreatment, powder spraying, baking, inspection, manual lamination, vacuum, furnace heating, release vacuum, cooling tear film, inspection package

Vacuum degree should be controlled rationally, and the vacuum degree too high or too low will result in unpatterned or blurred image. Transfer printing temperature should be controlled in 175 ~ 195 ℃. The temperature is high, the defects such as chromatic aberration, print spot, the temperature is too low, can cause the pattern blurred.

Corporate Overview:
Guangdong yong long aluminum Co.,LTD. is located in Shanshui District, Foshan City, Leping Group on the 10th, the company was founded in 1997, is set aluminum profile research and development, production and sales as one of the integrated large-scale aluminum enterprises, "Hong surplus" brand. Strong comprehensive strength and quality of service, so that Wing Lung "Hong Ying" selling all over the world, exports to East Asia, South America, South Africa, the United Kingdom, Dominican,Russia and other countries.

Corporate Certification:
After years of development, the company passed the ISO9001: 2000 quality system certification, the international standard product certification. Yonglong Aluminum has won the "Guangdong Province Famous Brand", "Guangdong Province Famous Brand", "ISO14001 Environmental Management System Certification", "OHSMS18001 Occupational Health and Safety Management System Certification", "Adopting International Standard Products" Is "," China's quality products "and other certificates. Companies adhere to the scientific concept of development, by strengthening the comprehensive management and increase innovation, and continuously enhance the energy-saving emission reduction enterprises to accelerate into the environment-friendly modern enterprise list.

Corporate Culture and Philosophy:
The company insisted: "unity and progress, pioneering and innovative, high quality of this, service to win" business purposes, the new full cooperation with customers, Gongtuo career, create a better future.


We have participated in exhibitions all over the world in order to expand the market, made a lot of customers and friends, quality and price guarantee, orders continue to flow

When you work with us, you can expect top-quality resources and parts, excellent customer service, and to be treated like family. We’re invested in this industry and our clients. When you work with us, you can tell the difference!

We welcome customers from all around the world!
We provide the best price and best service!
