    Magnatic Linear Motor SMT Multi Functional Placement Machine For DOB Bulb / Panel Light

    Ask Lasest Price
    Brand Name : ETON
    Model Number : HT-E8S-600
    Certification : CE,CCC,SIRA
    Payment Terms : T/T
    Supply Ability : 50 sets per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    Magnatic Linear Motor SMT Multi Functional Placement Machine For DOB Bulb / Panel Light

    DOB bulb, panel light High end magnatic linear motor SMT multi-functional placement machine


    Features

    • Single module magnetic linear motor multifunctional pick and place machine
    • Mounting components: LED chips/capacitors/resistors/lens/IC/Shaped Components, etc.
    • Component: Min. size 0402 Max. height 15mm
    • Application: Power driver. electric board. lens. linear Bulb. DOB, household appliance etc.

    Exclusive patented technology


    • Electronic feeder feeding system.
    • Vision alignment flight identifications, Mark correction.
    • Non-stop material re-loading function
    • Auto-optimization after coordinates generated, etc.

    Technical parameter

    ModelHT-E8S-600
    Dimension
    Length2550 mm
    Width1650 mm
    Height1550 mm
    Total Weight1500 kg
    PCB
    PCB Length WidthMax:600*500mm Min:100*100mm
    PCB Thickness0.5-5mm
    PCB ClampingAdjustable pressure pneumatic
    Mounting ModeGroup picking and separate placingseparate picking and separate placing
    O.S.
    SystemWindows7
    SoftwareR&D independently
    DisplayTouch screen monitor
    Input DeviceKeyboard, Mouse
    Vision System
    No. of Camera2 sets of imported camera
    Vision for the flight identification, MARK correction
    Mounting Precision±0.04mm
    Mounting Height<15mm (Automatic Changing)
    Mounting Speed45000 CPH(The optimum speed)
    ComponentsLED , capacitors, resistors, IC ,Shaped components, etc.
    Components Space0.2mm
    No. of Feeders Station28 PCS
    No. of nozzles12 PCS
    Power380AC 50HZ
    Power Consumption4 KW
    Operating Environment23℃±3℃
    Conveyor transmissionMax length :1200 mm
    Transmission Speed>1000mm/sec
    Transmission DirectionBoth direction (option)
    Transmission ModeAuto online drive
    Air supply0.4-0.6mpa (4-6kgf/cm2)150N/min
    Electrical controlIndependent research and development by ETON
    X,Y,Z Axis Drive wayHigh-end magnetic linear motor + Servo motor
    Feeding wayElectric feeder with double motor

    Machine application

    Our Exhibitions

    Participate in various exhibitions at home and abroad every year (except during the epidemic period)

    Domestic exhibitions: Guangzhou Guangya Exhibition, Shanghai Munich Exhibition, Chongqing LED Light Exhibition, etc.

    Foreign exhibitions: India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, Thailand Exhibition, etc.

    Service

    Pre-sale

    1)Provide equipment, such as pick and place machine, stencil printer, reflow oven, conveyor,etc

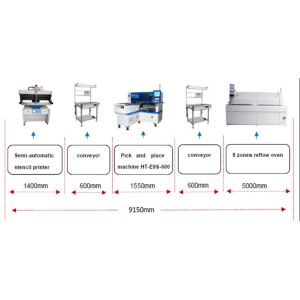

    2)SMT whole line solution, based on customer’s factory layout, requirement, product, etc.

    On-sale

    1)Real-time follow-up of the production situation of the customer’s machine.

    2)Inform the customer of the production progress with video or photos.

    After-sale

    1)On-site Free installation.

    2)One-year Warranty factory service.

    3)Two regular visits customer one year.

    4)Free technical training

    Technical support

    1)Free technical training of operating and maintenance.

    2)7*24 hours technical online support.

    3)Local engineer in India(Delhi, Mumbai and Daman), Turkey, Egypt.
