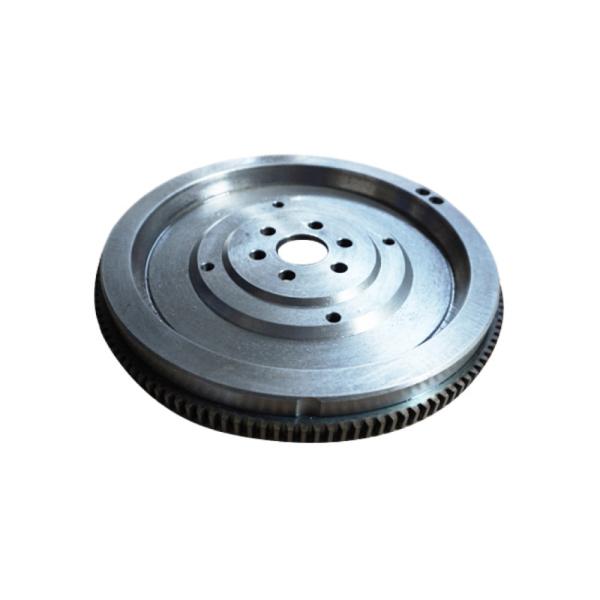

    Lada 71523 Flywheel Assembly Cast Iron 21100-1005115 IAFTF 16949 Certified

    Ask Lasest Price
    Model Number : Lada/71523/128 teeth cast iron flywheel/Russian model flywheel
    Price : Negotiation
    Payment Terms : L/C,T/T,etc.
    • Product Details
    • Company Profile

    Lada 71523 Flywheel Assembly Cast Iron 21100-1005115 IAFTF 16949 Certified

    Description

    Please click to view Flywheel alog!.pdf


    1. The flywheel product is made of standard HT250 material, the hardness of the matrix reaches 170-200HB, the ring gear part is made of standard 45# alloy steel, and the high-frequency quenching process is adopted. The hardness of the teeth can reach 48-58HRC, which makes the product more heat-resistant and wear-resistant. more durable.

    2. Our company uses fully automatic CNC machine tools, machining centers, and dynamic balancing equipment in the processing process to ensure that the processing accuracy of the product is better, and it can reach the dimensional accuracy of the original car factory, so that the sound of the product is smaller and more stable when it is used. .

    3. The inspection adopts 3-D Measuring/Metallurgical Micro-test/Hardness test/Tension test and other equipment to ensure that there will be no defective products in the factory.

    4. Export products are made of high-strength five-layer A-grade cartons, painted with anti-rust oil on the outside, and covered with anti-rust sealed bags to ensure that the products will not be rusted due to transportation problems.

    Advantage

    Improved Clutch Performance: The flywheel is responsible for transmitting power from the engine to the transmission through the clutch. A well-designed flywheel can improve the performance of the clutch, providing a smoother engagement and disengagement and reducing wear on the clutch components.


    Details

    Teeth128
    For Coupling Size(mm)175
    Clutch Holes&Size (mm)6-Φ10.5
    Outer Diameter278
    Inner Diameter(mm)35
    Height28
    Pitch Cride (mm)62
    Clutch Pitch Cride(mm)235

    Crafts

    Machining

    Drilling Injection Holes

    Dynamic Balance

    Mark

    Package


    Inspection

    Tension Test

    Metallurgical Micro-Test

    Hardness Test

    3D Measuring
