Lock Stitch Quilting Machine Computerized Quilting Embroidery
Machine Multi Needle Quilting Machine
Quilting Patterns and Designs: Lock stitch quilting machines often
come equipped with a wide variety of pre-programmed quilting
patterns and designs. These patterns can include geometric shapes,
floral motifs, stippling, waves, or custom designs. The machine's
control panel or software interface allows users to select and
program the desired quilting pattern, stitch length, and width to
achieve the desired aesthetic effect.
Adjustable Stitch Length and Tension: A lock stitch quilting
machine provides adjustable stitch length and tension settings.
This allows users to customize the appearance and functionality of
the quilting stitches. The stitch length determines the distance
between adjacent stitches, while the tension ensures the stitches
are neither too loose nor too tight. Adjustable settings provide
flexibility to match the fabric type, thickness, and desired
quilting effect.
Technical parameters :
Model | YGC96-2-3 | YGC96-3-5 | YGC96-3-6 |
Dimension(L*W*H) | 4900mm*1200mm*1800mm | 4900mm*1200mm*1800mm | 4900mm*1200mm*1800mm |
Quilting Width | 2450mm | 2450mm | 2450mm |
Needle rows | 2 | 3 | 3 |
Space between needle rows | 3"(inch) | 3"+2"(inch) | 3"+3"(inch) |
Space between needle | 25.4mm | 25.4mm | 25.4mm |
X-axis movement displacement | 254mm | 304.8mm | 304.8mm |
Thickness of quilting | 25mm | 25mm | 25mm |
Stitch length | 2-8mm | 2-8mm | 2-8mm |
Speed of operation(m/hour) | 20-120(m/hour) | 20-120(m/hour) | 20-120(m/hour) |
Model of needle | 16#,19# | 16#,19# | 16#,19# |
Quilting Speed(r/min) | 300-800(r/min) | 300-800(r/min) | 300-800(r/min) |
Voltage(AC) | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ,3P | 380V/50HZ,220V/60HZ'3P |
Total power | 5.5KW | 5.5KW | 5.5KW |
Gross weight | 4500kg | 4500kg | 4500kg |
Product main features :
1,Computerized speed governing , max.800r/min.
2,Needle row driven by aluminum alloy needle bar frame structure.
Oil free, sturdy and durable.
3,Saddles and Rollers driven by Servo drive equipment, Spindle
adopts frequency conversion control.
4,Saddles using quilting machine with high rigidity design. The
stand of fabric separate from saddles, effectively reduce the
operating load of motor.
5, Dual clutch device, to solve the synchronization problem of
rollers in front and back.
6, Using high-precision and high rigidity Imported screw mandrel.
7, 360 degree free quilting come with unlimited Multi-span quilting
independent patterns.
8, Automatic thread-break detection unit.
9, Infrared sensor make sure more safety operation.
10,The machine runs smoothly,low noise, high precision, low
thread-break rate and easy to operate.
Detailed Images :
1,Routine two rollers structure
2,New aluminum alloy needle bar frame structure
3,The stand of bottom cloth separate from moving saddles
4,Edge trimming and slitting function,if customer need,you can
choose this device .(Protected patents in the machine appearance
&structure,do not imitate,please)
Purpose :
It is widely used for quilting high-quality garments, bedding
covers, textile, leather, shoes, cap, bags, vanity, gloves,
sleeping bag, seat cover and Wall decoration etc.

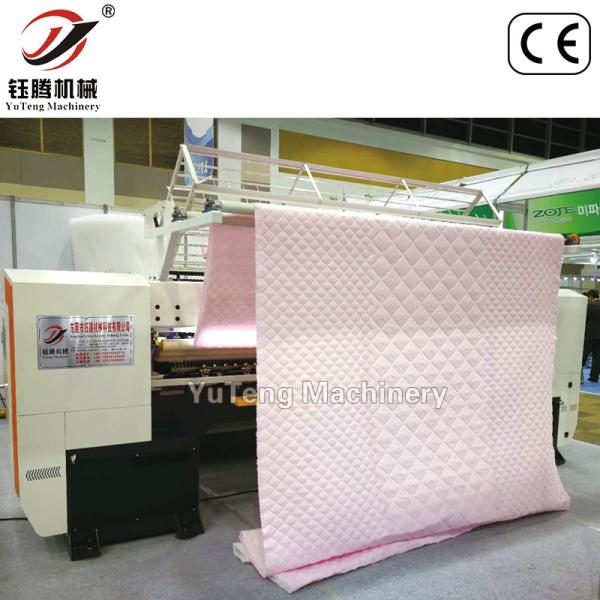

Quilting Machine Pictures :
Certificate :
Company picture :
1. Delivery Time: It is generally within 7 to 30 days upon receipt
of your 30% deposit, but it depends on the final quantity of the
order.
2. Payment Terms: T/T 30% deposit in advance, 70% balance before
shipment.
3. Delivery Terms: FOB, CIF, CFR, etc.
4.Warranty: One year.
5.Overseas engineers can be sent to install machines and teach you
how to use them.
6.We provide both Before-sale service and After-sale service.
