Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector

    Buy cheap Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector from wholesalers

    Buy cheap Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector from wholesalers
    • Buy cheap Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector from wholesalers
    • Buy cheap Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector from wholesalers
    • Buy cheap Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector from wholesalers
    • Buy cheap Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector from wholesalers
    • Buy cheap Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector from wholesalers
    • Buy cheap Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector from wholesalers

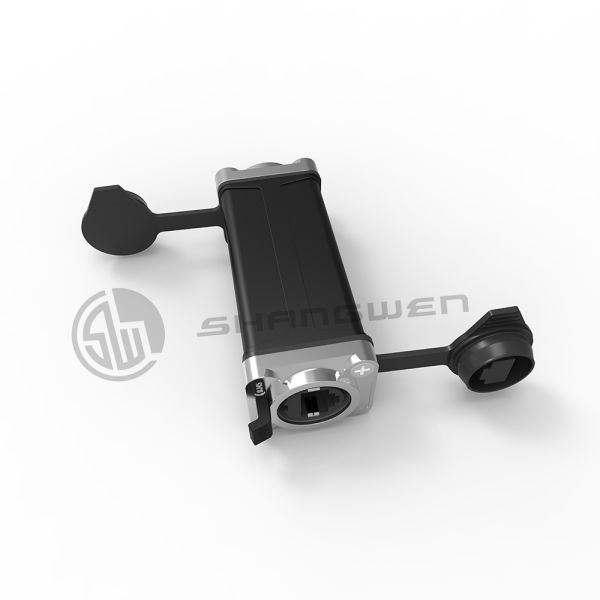

    Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : Outdoor signal adapter
    Price : $3.20/pieces 2-99 pieces
    • Product Details
    • Company Profile

    Shangwen Rj45 Outdoor Coupler Female Signal Cable Adapter Connector


    Wholesale Outdoor Coupler Rj 45 Plug Female Signal Adapter Cable Connectors

    1. Product parameters
    Connection Type
    Coupler (adapter)
    Gender
    Female
    2. Electrical parameters
    Contact resistance
    < 10 mΩ
    Dielectric strength
    1 kVdc
    Frequency Range
    1 - 100 MHz
    Insulation resistance
    > 0.5 GΩ
    Rated current per contact
    1,5 A
    Rated voltage
    < 50 V
    Standards compliant
    TIA/EIA 586B, IEC11801
    3. Mechanical parameters
    Insertion force
    ≤ 20 N
    Pull out force
    ≤ 20 N
    Service life
    > 1000 mating cycles
    Locking device
    Latch lock
    4.Material and environmental parameters
    Contacts
    Bronze (CuSn8)
    Contact plating
    0.2 µm Au over Ni plating
    Inner core
    PBTP 15 % GR
    Shell
    AlMgSi 0.5, black plated
    Clamping sleeve
    CuZn35Pb2, tinned
    Flammability
    UL 94 HB
    Temperature range
    -30 °C to +80 °C
    5. Assembly reference
    Products Description
    etherCON feedthrough coupler for cable to cable extensions
    Outdoor signal adapter connector
    Accommodates NE8MC* or any standard RJ45 plug
    NE8FF coupler (adapter) for cable to cable mating – use with NE8MC carriers or any standard RJ45 plug
    Approved latch lock system
    Application area
    Company Information
    Patent & Certification
    Exhibition activities
    Packaging reference
    Payment and logistics
    FAQ
    1.Why do we choose SHANG WEN supply?
    A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

    2.What is the applicable range of this product?
    A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

    3.Can your products pass CE/ROHS certificate?
    A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

    4.Accept sample order ?What is your minimum order quantity?
    A:Trial order or sample order is accept,but same cost as bulk.

    5.What are the shipping ways you can offer?
    A:By air/sea according to customers'requirements.

    6.Do your products come with warranty?
    A:Yes,we promise 1-3 year warranty according to different model.
