    Male Female Powercon Connector

    Ask Lasest Price
    Brand Name : SHANGWEN
    Model Number : SW3FX-WN
    Price : $1.40 - $3.20/pieces
    Certification : CE、CQC、UL、ROHS
    • Product Details
    • Company Profile

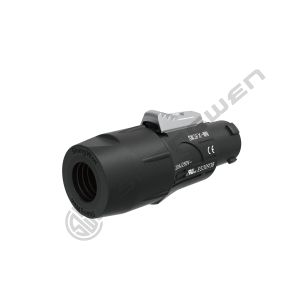

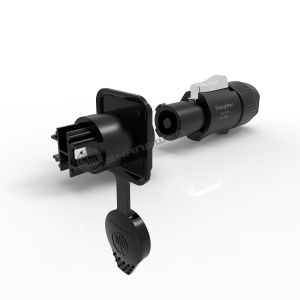

    Male Female Powercon Connector

    China Manufacture Outdoor Use Led Display Power Connection Male Power Connector

    Outdoor 3Pin Power Waterproof AC Connectors High Current Capacity Lockable Triple Core 20A 500V True IP65 Waterproof Connector


    Application industries


    Electric vehicle charging

    Hair trimmer

    Cleaning machine

    Electric vehicle charging

    Fruit dryer


    Products Description
    Power connector series-male powercon(output port)

    This series is widely used in outdoor rental LED display power connection.
    The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
    resistance, explosion resistance and corrosion resistance.
    Using rotary locking design, easy to operate, stable and reliable !The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.

    The new upgraded model not only supports male and female inserts, but also supports male plug and male plug inserts


    Model : SW3FX-W ( outdoor use/output port)

    ☑High current capacity, rated at 20A/250V AC
    ☑Quick and simple locking system, the keys are firm and do not fall off

    ☑The product is a new upgraded generation of power connectors, widely used in outdoor conditions for electrical connection
    ☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
    ☑Connection mode:

    1. Screw clamping and welding
    2. Lock the cable with screws

    1. Electrical parameters
    Contacts NO.
    2+PE
    Rated current
    20A
    Rated voltage
    250V AC
    Contact resistance
    ≤5mΩ
    Dielectric strength
    4000V DC
    Insulation resistance
    >1000MΩ
    2. Mechanical parameters
    Service life
    >1000 times
    Power line
    2.5mm²(8mm - 12mm)
    Wire stripping length
    7-8mm
    Type of teminals
    Screw type clamping units solder termination
    3. Material and environmental parameters
    Shell
    PA
    Contacts
    Cu alloy
    Contact surface
    Ag
    Flame-retardant grade
    UL94-V0
    Protection grade
    IP65
    Temperature range
    -30°C to +80°C
    4. Size reference (unit /mm)


    5. Installation reference drawing
