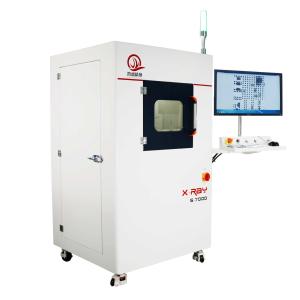

Offline Programming Real Time X Ray Machine For PCB 1.6kW Sealed Tube

1.6kW Offline Programming X Ray S7000 For Connector

Description Of SMT X Ray machine

X Ray machine is a non-destructive testing method that examines many types of manufactured components through the penetrating power of X-rays to verify internal structures.

Application Fields of X-ray machine
1. SMT, BGA, CSP, Flip Chip, LED Detection.
2. Semiconductor, Packaging components, Battery Industry.
3. Electronic components, Auto parts, Photovoltaic Industry.
4. Aluminum Die-casting, Moulding Plastic.
5. Ceramics, Other Special Industries.

Standard configuration

1. Adjust the speed of the stage through the space bar: slow, normal, fast

2. Keyboard control X, Y, Z1 Z2 the four-axis movement.

3. The user can control the speed of the stage by programming

Fully automatic BGA detection program

1.Simple mouse click to write program.

2.Automatic analysis on diameter, proportion of cavity, area and roundness of BGA.

3.Automatic BGA detection program has high repeatability of detection results for process control.

4.The test results will be displayed on the screen and can be output to excel for review.

CNC programming

1. Simply mouse click to write detection program.

2. Sample tablecan be positioned in X, Y direction; X-ray optical tube and detector can be positioned in Z direction.

3. Software set voltage and current.

4. Image settings: brightness, contrast, auto gain and exposure.

5. Users can set the pause time for program switching.

6. Anti-collision system can meet the maximum tilt and observation.

FAQ:

1. Q: Are you trading company or manufacturer?
A: We are original manufacturer. Our company mainly produces X-ray machine.

2. How about the package? Is it safe during the delivery?

All PCB X-ray inspection machine is packed by standard strong wooden carton.It is safe when shipping.

3. Do you provide the Warranty? How about the after sales service?

1 year warranty free for spare parts, Whole life technicial support.

We have professional after sales team, if any question, assistant videos are also provided in after-sale service.

4. If we come to your factory, if you will provide the free training?

Yes, warmly welcome you to visit our factory, we will arrange the free training for you.
