Used 2020 Shacman New M3000 8*4 Dump Tipper Truck 400HP
Used Truck, Shacman Truck, Dump Truck, TIpper Truck, Dumping Truck,
Shacman Truck
Shaanxi Automobile Datong mining dump truck is a dump truck
tailored for open-pit mining areas. Its main advantages are firm
structure and durable skin.
The overall structure of this dump truck has been strengthened
according to the working environment of the open-pit coal mine and
the characteristics of the loaded goods. It is an upgraded work
based on the analysis and resolution of the defects of the
competitors' products and optimized design. It realizes the close
combination of vehicles and working conditions, and is the choice
for users to create value.
Product selling point
Weichai WP12. engine (Youshun brake), Cummins ISM11E5 engine
(Jikebo brake), the torque is greater than the same horsepower
competing products, Fast double intermediate shaft large center
distance structure gearbox (telescopic rod shift), Reinforced cab,
oil-bath air filter, reinforced drive shaft, high reliability shock
absorber, new application of APU+ oil-water separator,
double-travel relay valve, brake safety, maintenance-free battery
and water tank protection grille.
Excellent load bearing
The high-strength alloy 850X300 (8+7) outer three-layer frame, the
longitudinal beam height is 300mm, the wall thickness of the main
beam and the inner lining beam are 8mm and 7mm respectively, and
the thickness of the front reinforced leaf spring can reach 18mm.
After unloading, the total thickness of the leaf spring is
increased by 24mm. It matches the 9.5-ton front axle of Hande MAN
technology and the 16-ton MAN technology casting axle. The bearing
strength is increased by 27% and the bending strength is increased
by 30%. With the four-horse-bolt suspension system, it is very
proud. A harsh working condition.
high passability
The urea tank is increased by 130mm, the SCR box of the exhaust
system is increased by 70mm, the newly developed oil-bath air
filter, and the ground clearance of chassis components such as the
ground clearance is increased by 50mm.
| Basic Information |
| Announcement model: | SX3319HD276 | Drive form: | 8X4 |
| Wheelbase: | 1800+2675+1400mm | engine: | Weichai WP12.400E62 |
| Gearbox: | Fast 12JSD200T-B | Rear axle ratio: | 5.262 |
| Body length: | 8.7 meters | Body width: | 2.55 meters |
| Body height: | 3.5 meters | Front track: | 2036/2036mm |
| Rear Track: | 1860/1860mm | Vehicle weight: | 15.5 tons |
| Rated load: | 15.37 tons | Total mass: | 31 tons |
| Tonnage class: | Heavy Truck | Approach angle: | 17 degrees |
| Departure angle: | 23 degrees | Origin: | Shaanxi Xi'an |
| Market segments: | Urban construction waste | Overall ratio: | 5.262 |
| Engine parameters |
| engine model: | Weichai WP12.400E62 | Engine Brand: | Weichai |
| Number of cylinders: | 6 | Fuel type: | diesel fuel |
| Displacement: | 11.6L | Emission Standards: | country six |
| Maximum horsepower: | 400 hp | Maximum output power: | 294kW |
| Max torque: | 2000N m | Maximum torque speed: | 1000-1400rpm |
| Rated speed: | 1900rpm | Engine form: | CR+DOC+DPF+Hi_SCR |
| Cargo box parameters |
| Cargo Length: | 5.6 meters | Cargo width: | 2.35 meters |
| Cargo height: | 1.5 meters | Cargo box form: | self-unloading |

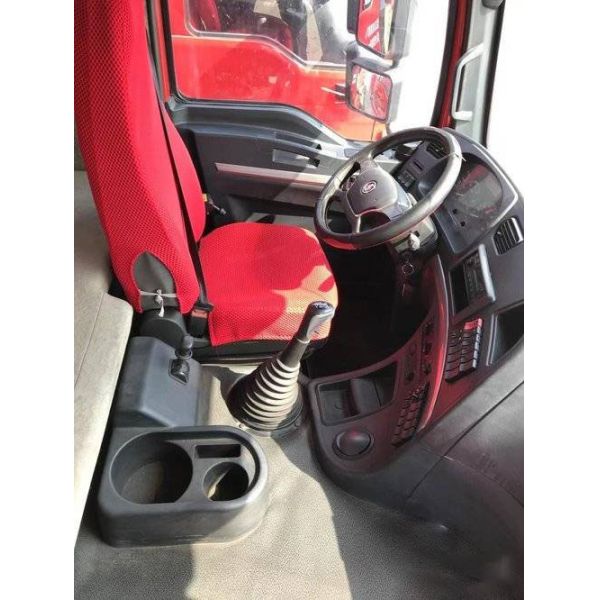

| Cab parameters |
| Cab: | New M3000 | | |
| Transmission parameters |
| Gearbox Model: | Fast 12JSD200T-B | Gearbox brand: | Fast |
| Forward gear: | 12 gears | Number of reverse gears: | 2 |
| tank | | | |
| Fuel tank material: | Aluminum alloy | Fuel tank capacity: | 300L |
| Chassis parameters |
| Front axle allowable load: | 6500/6500kg | Description of rear axle: | Hande 16T Super Bridge |
| Rear axle allowable load: | 18000 (two-axis group) kg | Speed ratio: | 5.262 |
| Number of spring pieces: | 14/14/12, 10/10/10 | | |
| tire |
| Tire specifications: | 11.00R20 18PR, 12.00R20 18PR, 12R22.5 18PR | Number of tires: | 12个 |
| control configuration |
| ABS Anti-lock Braking: | ● | | |
