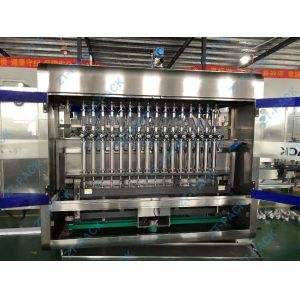

High Accuarcy Automatic Car Oil Packing Line 500ml Bottling Filler
Lubricant Oil Filling Machine
Description
High Accuarcy Automatic Car Oil Packing Line 500ml Bottling Filler
Lubricant Oil Filling Machine is an extremely flexible piston
fillers capable of filling accurately and rapidly a wide variety of
products from low viscosity liquids to high viscosity paste or
cream with or without chunks or particulates. Widely used in food
industry(e.g.,paste filling machine, butter filling machine, jam
filling machine, ketchup filling machine, honey filling machine,
edible oil filling machine, sauce filling machine etc); household
product industry(e.g.,shampoo filling machine, liquid soap filling
machine, liquid detergent filling machine, hand wash filling
machine etc), personal care industry(e.g.,cream filling machine,
lotion filling machine, gel filling machine, perfume filling
machine etc); Chemical industry(e.g., grease filling machine,
lubricant filling machine etc); pharmaceutical industry(e.,g
ointment filling machine, e liquid filling machine etc).
Automatic linear piston filler is designed for completely
automatic, multiple position, inline dispensing of liquids and
pastes in volume ranging from 50ml to 1000m per cycle. Available in
6, 8, 10 ,12 and 16 nozzle configurations to match specific
production requirements, Dual lane option is available to increase
production by 100% while preserving valuable line space.
The application of touch-screen technology, the operation of the
machine is more reliable, convenient and human-machine interface
more friendly. Photoelectric sensors, proximity switches, etc. are
used in advanced sensing elements, so no bottle no filling,
plugging bottles will automatically stop and alarm,filling way with
dive style, using different materials seal rings, to meet the
different characteristics of the filling material.
Parameters:
| Model | ZGP-6H | ZGP-8H | ZGP-10H | ZGP-12H | ZGP-16H |
| Dimension | 2000×710×2200mm (L×W×H) | 2200×710×2200mm (L×W×H) | 2300×710×2200mm (L×W×H) |
| Filling head | 6 | 8 | 10 | 12 | 16 |
| Capacity(500mL) | 1500B/H | 2000 B/H | 2500 B/H | 3000 B/H | 4000 B/H |
| Power | 1KW | 1 KW | 1KW | 1.5KW | 1.5KW |
| Suitable bottle | Diameter:Φ40mm——Φ100mm Height:80mm——280mm |
| Filling accurate | ≤100ml:+ -1.5ml
100-500ml:+ -2ml
500-1000ml:+ -3ml |
| Neck diameter | ≤Φ10mm ( can be designed accordingly) |
| Filling range | 50ml——5000ml (From ZT-PACK) |
| Filling System | Gravity Time Control |
| Air pressure | 0.6Mpa |
| Power supply | 220V ；50HZ / 60HZ |
Details:
