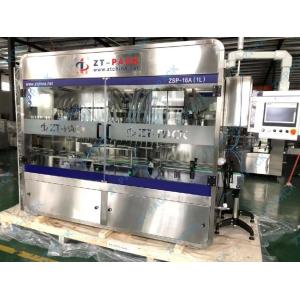

SUS316 4800BPH Fully Automatic Edible Oil Filling Machine
Description
ZSP-A SUS316 4800BPH Fully Automatic Edible Oil Filling Machine is
an extremely flexible piston fillers capable of filling accurately
and rapidly a wide variety of products from low viscosity liquids
to high viscosity paste or cream with or without chunks or
particulates.
Widely used in food industry(e.g.,paste filling machine, butter
filling machine, jam filling machine, ketchup filling machine,
honey filling machine, edible oil filling machine, sauce filling
machine etc); household product industry(e.g.,shampoo filling
machine, liquid soap filling machine, liquid detergent filling
machine, hand wash filling machine etc), personal care
industry(e.g.,cream filling machine, lotion filling machine, gel
filling machine, perfume filling machine etc); Chemical
industry(e.g., grease filling machine, lubricant filling machine
etc); pharmaceutical industry(e.,g ointment filling machine, e
liquid filling machine etc).
Automatic linear piston filler is designed for completely
automatic, multiple position, inline dispensing of liquids and
pastes in volume ranging from 50ml to 1000m per cycle. Available in
6, 8, 10 ,12 and 16 nozzle configurations to match specific
production requirements, Dual lane option is available to increase
production by 100% while preserving valuable line space.
Linear piston liquid filling machinery is manufactured with a 304
stainless steel frame, It comes standard with PLC control and touch
screen HMI ensuring reliable, repeatable control with minimal
operator intervention, Precision bored, heavy- walled metering
cylinders dispense product at accuracy up to +/- 0.2%,
High-precision, servo motor driven screw movement faster and more
precise than pneumatic system, food grade stainless steel and
plastics for sanitary operations or use,anodized aluminum
components, plus many more features available with motorized
conveyor and indexing package for integrated container handling and
positioning, No container/No fill feature detects missing or
mispositioned containers to prevent waste and product spillage.
Unique variable, separate speed control and actuator of a
dual-stage fill provides precise “no spill” control for top-off
applications or filling difficult products.
Parameters:
| Model | ZSP-6A | ZSP-8A |
| Dimension | 2200mm(L)x1100mm(W)x2200mm(H) | 2400mm(L)x1100mm(W)x2200mm(H) |
| Filling head | 6 | 8 |
| Capacity(1L) | 1800B/H | 2500 B/H |
| Capacity(5L) | 700B/H | 1000 B/H |
| Power | 3KW | 4KW |
| Suitable bottle | Round bottle: Height:100-320mm / Diameter:Φ60-140mm,
Flat bottle: Length:100-200mm / Width:40-80mm / Height:150-300mm |
| Filling range | 1L-5L (From ZT-PACK) |
| Filling Type | Piston system |
| Piston Size | 5L |
| Air pressure | 0.6Mpa--0.8Mpa |
| Power supply | 380V ;50HZ / 60HZ |
