    MDDLN55SE Industrial Servo Drives Panasonic 3-Phase 200 V A6SE Series

    Ask Lasest Price
    Brand Name : Panasonic
    Model Number : MDDLN55SE
    Certification : CE
    Price : Negotiated
    Payment Terms : T/T
    Supply Ability : 1000
    Delivery Time : 5-8days
    • Product Details
    • Company Profile

    MDDLN55SE Industrial Servo Drives Panasonic 3-Phase 200 V A6SE Series

    MDDLN55SE Panasonic 3-phase 200 V A6SE series Industrial Servo Drives


    Spec Detail


    ItemSpecifications
    Part NumberMDDLN55SE
    DetailsA6SE series
    Position control type (Incremental system only, Pulse train only)
    without the safety function
    Family NameMINAS A6
    SeriesA6SE series
    TypePosition control type
    FrameD-Frame
    Frequency response3.2 kHz
    Control methodPosition control
    About control methodA6SE series driver (Position control only) does not correspond to the absolute system of using the serial communication with the host device. It supports incremental system only.
    Safety Functionwithout the safety function
    Supply voltageSingle/3-phase 200 V
    I/F Classification of typePulse train only
    Dimensions (W) (Unit: mm)85
    Dimensions (H) (Unit: mm)150
    Dimensions (D) (Unit: mm)170
    Mass (kg)2.1
    EnvironmentFor more details, please refer to the instruction manual.

    Specifications


    • Input power: Main circuit Single/3-phase 200 to 240V +10% -15% 50/60 Hz
    • Input power: Control circuit Single phase 200 to 240V +10% -15% 50/60 Hz
    • Encoder feedback 23-bit (8388608 resolution) absolute encoder, 7-wire serial
    • About Encoder feedback * Since it can be used only as an incremental system, do not connect the battery for absolute encoder. Parameter Pr. 0.15 must be set to "1" (factory settings).
    • Parallel I/O connector:
    • Control signal Input General purpose 10 inputs
    • The function of general-purpose input is selected by parameters.
    • Parallel I/O connector:
    • Control signal Output General purpose 6 output
    • The function of general-purpose output is selected by parameters.
    • Parallel I/O connector:
    • Analog signal Output 2 outputs (Analog monitor: 2 output)
    • Parallel I/O connector:
    • Pulse signal Input 2 inputs (Photo-coupler input, Line receiver input)
    • Parallel I/O connector:
    • Pulse signal Output 4 outputs (Line driver: 3 output, open collector: 1 output)
    • Communication function USB
    • Communication function: USB USB interface to connect to computers for parameter setting or status monitoring.
    • Regeneration Built-in regenerative resistor (external resistor is also enabled.)
    • Control mode Switching among the following 3 mode is enabled,
    • (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command

    The following are some of the drive models, both new and used are stocked:

    MSDA3A3A1AMSDA5A3A1AMSDA013A1A
    MSDA023A1AMSDA043A1AMSDA083A1A
    MDDA103A1AMDDA153A1AMDDA203A1A
    MDDA253A1AMDDA303A1AMDDA353A1A
    MSDA403A1AMSDA503A1AMSD023A1XXV
    MSDA083A1XXVMSD043A1XMSDA043D1A
    MQDA043A1AMUDS043A1AMUDS023A1A
    MUDS083A1AMUMS082A1E0SMUDS083A1M
    MUMA012P1TMUMA022P1TMUMA042P1T
    MUMA042P1SMUMA012P1SMUMA022P1S
    MUMS082P1SMSDA043A1XXVMSDA013A1XXV
    MKDET1505PMLDET2310PMUMA082P1T
    MLDET2510PMKDET1310PMUMS042A1AOS
    MSM041A211MQMA042A1EMSMA022P1A
    MSM042P1BMSM042AJBMSM011P1N
    MQMA022S2PMSM012AJAMSM012P1F
    MDMA152S1CMSM042AJAMQMA012C2P
    MSMA022A1BMSM021DJEMSD043A1X
    MSD043A1XXMSM042A1AMSM5AZA1B
    MUMS012C2U1SMUMS012A1F0SMSMZ082A1B
    MSD013A1XXMSM012A1AMSMA012C1A
    MSDA013D1AMSMA5AZS1AMQMA012P1B
    MSMD042P1TMUMS022A1B0SMFM082A1C
    MQMA042A1EMSMA022C1AMSMA022C1E

    Wisdomlong Technology CO.,LTD Featured Products:


    【Yaskawa】Servo Drive / Servo Motor

    【Mitsubishi】Servo Drive / Servo Motor


    【Honeywell】Module DCS / PLC

    【Emerson】DeltaV Module / Servo Motor


    【ABB】Input Output Module

    【AB】Module / Touch Screen


    【GE】IC69 Series PLC/ Fanuc Servo Motor and Drive

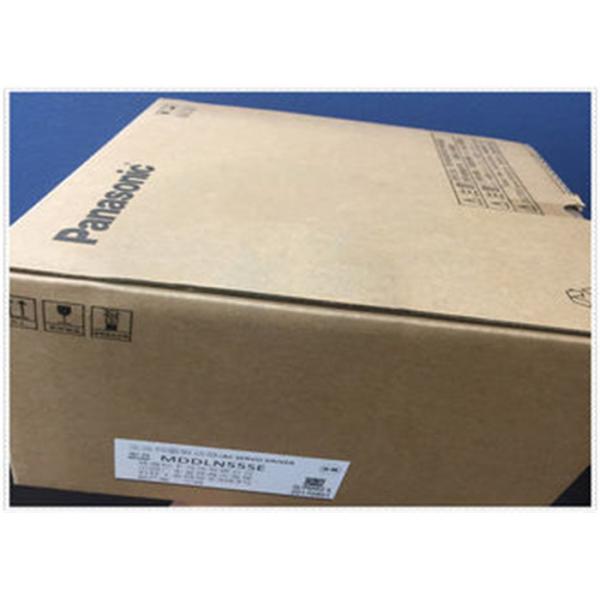

    Quality MDDLN55SE Industrial Servo Drives Panasonic 3-Phase 200 V A6SE Series for sale
