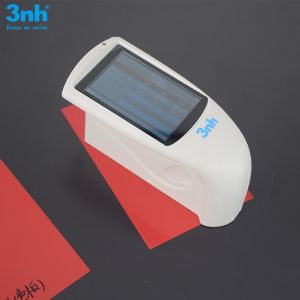

    Digital Paint Digital Gloss Meter USB Connection / Data Storage High Precision

    Ask Lasest Price
    Brand Name : 3nh
    Model Number : NHG268
    Certification : CE,RoHs,ISO,ASTM etc.
    Payment Terms : T/T,Paypal
    Supply Ability : 1000pcs/month
    Delivery Time : 2 work days
    • Product Details
    • Company Profile

    Digital Paint Digital Gloss Meter USB Connection / Data Storage High Precision

    USB Connection And Data Storage Precise Digital Intelligent Car Paint Gloss Meter Price


    Brief Introduction:


    Stable Performance,high precision, NHGseries touch screen gloss meter with large touch screen operation.NHG268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813 and GB/T 9754. It is also compatible with the standards of ASTM D523, ASTM D2457. NHG268 conforms to JJG696 first class gloss meter working requirement, corresponding with CIE 1931(2°) under CIE C light source.


    Features:


    • 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
    • One button for all angles measurement at the same location
    • Display 5 sets of measurement data, good for comparison
    • Measuring mode: basic measurement, statistical measurement, continuous measurement, QC measurement (only for GQC6 software).
    • Continuous mode to check uniformity over large areas
    • Connect to PC, more extend functions
    • Input gloss value manually
    • Large touch screen operation, easy to use
    • Beauty appearance, good man-machine communication interface
    • Powerful functions to meet many different requirements
    • Large storage to save over 5000 data
    • Built-in lithi
    • um ion rechargeable battery.

    Specifications:


    NHG268 Multi-angle Precise Gloss Meter
    Model:NHG268
    Measuring Angle20°/60°/85°
    Comply with standard ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
    Measuring Area (mm)20°: 10x10 60°: 9x15 85°: 5x36
    Measuring Range20°:0~2000GU 60°:0~1000GU 85°:0~160GU
    Division Value0.1GU
    Measurement Range Repeatability Reproducibility0-10GU 10-100GU 100-2000GU
    ± 0.1GU ± 0.2GU ± 0.2%GU
    ± 0.2GU ± 0.5GU ± 0.5%GU
    Measurement StandardConform with JJG696 first class glossmeter working requirement
    Chromaticity CorrespondingCorresponding with CIE 1931(2°) under CIE C light source
    Errors±1.2 , ± 1.2%
    Measuring Time0.1s
    DimensionL*W*H : 160mm*75mm*90mm
    Weight350g
    LanguageChinese/English
    Battery3200mAh Li-ion Battery , >10000 times(within 8 hours)
    DisplayTFT 3.5 inch, capacitive touch screen
    InterfaceUSB/RS-232
    StorageBasic mode: 1000; Statistical Mode: 5000, Continuous mode : 5000
    SoftwareGQC6 Quality Control Software with QC report printing functions and more extended functions.
    Operation Temperature0~40℃(32~104°F)
    Storage Temperature-20~50℃(-4~122°F)
    Humidity<85% relative humidity, no condensation
    Standard AccessoriesPower Adapter, USB cable, User Manual, CD (Including QC software), Calibration Plate
    Optional AccessoriesMiniature Printer
    NoteThe specifications are subject to change without notice.

    Application:


    Surface luster meter for bake lacquer, printing ink, coating & wood work
    chemical polishing brick, granite & pottery brick

    Surface luster measure for plastic & sheet, and other non-metal materialst
