    SHACMAN Heavy Dump Truck with WEICHAI WP12.400E201 Engine FAST 10JSD180+QH50 Transmission and MAN 9.5T /2*16 T Axle

    Ask Lasest Price
    Brand Name : SHACMAN
    Model Number : F3000
    Certification : ISO 9001/CCC
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 5000 units/month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    SHACMAN Heavy Dump Truck with WEICHAI WP12.400E201 Engine FAST 10JSD180+QH50 Transmission and MAN 9.5T /2*16 T Axle

    SHACMAN 12Wheels Tipper Truck F3000 6x4 400Hp Euro II Red


    Detailed Product Description

    Model:SX3255DU384
    Drive type:6x4
    Weight: Gross Vehicle Weight≤50
    Engine Brand: WEICHAI
    Engine Model:WP12.400E201
    Engine Power/(kw/HP): 294kw / 400Hp
    Gear box Brand: FAST
    Gear box Model: 10JSD180+QH50


    Tipper Dump Truck Parameters

    ModelSX3255DU384
    Drive type6x4
    WeightGross Vehicle Weight≤50
    DimensionsWheelbase/(mm)3775+1400 mm
    PerformanceMaximum speed/(km/h)45~60/80
    Ground clearance>314
    EngineBrandWEICHAI
    ModelWP12.400E201
    Power/(kw/HP)294kw / 400Hp
    Maximum torque / (N.M)/rpm1800 N·M
    Displacement/(L)11.596 L
    Emission standardEuro II
    Gear boxBrandFAST
    Model10JSD180+QH50
    ClutchTypeφ430 Diaphragm spring clutch
    CoolingTypeDomestic heat sink
    Air inletTypeOrdinary air filter
    BrakesTypeDrum brake
    Service brakeDouble circuit air brake
    Park brakeRear wheel spring brake
    Auxiliary brakeWEVB engine exhaust brake
    SteeringTypeZF8098 technology, circulating ball steering machine
    ChassisTypeParallel trapezoidal frame with variable section
    Dimensions/(mm)850×300(8+7)
    SuspensionFrontMulti-layered leaf springs with 4 Main springs+4 U Bolts
    RearMulti-layered leaf springs with 4 Main springs+4 U Bolts
    AxlesBrandHANDE
    Front axle9.5T front axle MAN technology
    Rear axle16T MAN Double Reduction Drive axle with inter helix differential and differential lock, bridge speed ratio: 5.92
    TiresType12.00R20
    Fuel tankTank capacity/(L)300L Aluminum tank
    ElectricsType24V
    Battery165Ah Maintenance-free battery
    CabTypeSHACMAN F3000 Medium-length flat cab
    EquipmentHydraulic main seat, four-point hydraulic suspension cab, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window shaker, 165Ah maintenance-free Battery, SHACMAN logo, full English logo.

    Truck Advantages

    • The F3000 dump truck is equipped with an intelligent control system that monitors and optimizes various parameters, such as engine performance, fuel consumption, and safety features. This system enhances operational efficiency, performance, and safety while providing real-time data for diagnostics and maintenance.

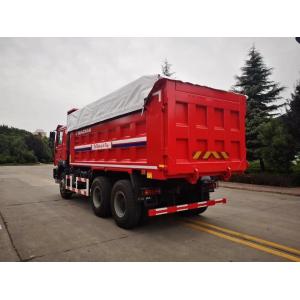

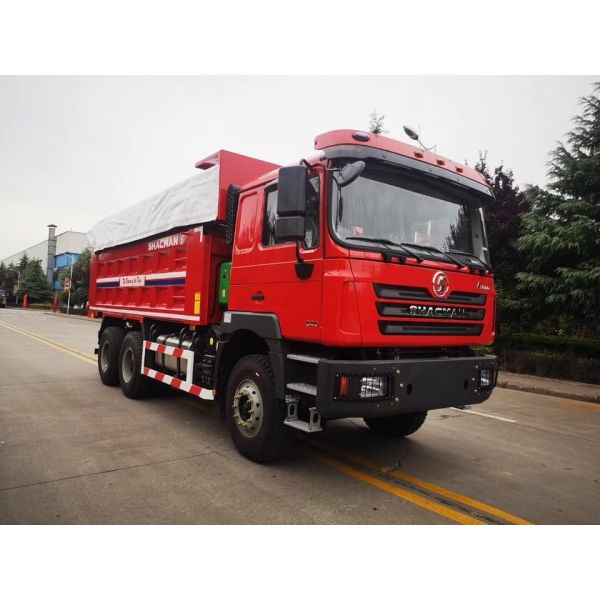

    Detailed Image


    FAQ
    1. Who are we?
    We are based in Shaanxi, China, start in 2015, sell to Africa (70.00%), Southeast Asia (10.00%), Central America (10.00%), South America (4.00%), Mid East (2.00%), Eastern Asia (2.00%), South Asia (2.00%). There are a total of about 11-50 people in our office.

    2. How can we guarantee quality?
    During the final inspection, trained inspectors thoroughly examine the products for any defects, damages, or deviations from the desired specifications. This inspection may include visual checks, functional tests, measurements, and other quality control procedures

    3. What can you buy from us?
    Dump truck, track truck, lorry truck, Van truck, Mixer truck,

    4. What services can we provide?
    Accepted Delivery Terms: FOB, CFR, CIF, DAF, EXW, CIP, DDU;
    Accepted Payment Currency: USD, EUR, CNY;
    Accepted Payment Type: T/T, L/C, D/P D/A
    Language Spoken: English, French, Russian, Spanish
