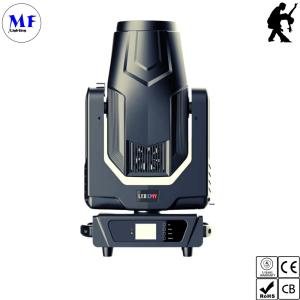

LED Stage Light 500W Moving Head BSW Light With DMX Voice Sound
Control For Concert Live Performance Music
1.Rated voltage :90-240V 50-60Hz Rated power :400W 2.Led color
temperature: 6800K (positive white)
3.Color Disk: 4Colour +1(white and white)
4.Color temperature dial color temperature :2700K.3000K.4000K.6500K
custom color support 5.Channel: channel 10
6.Focus Angle :8-55°
7.Effective range :50m
8.Magnification effective distance :5m100
9.Screen material :TFT
10.LCD screen Operation mode: press the button 11.Features:
Built-in walk through program for sound control DMX512 with RDM
9.Weight :6.5kg
1.Input voltage :AC90V-240V/50-60HZ Light source 2.specification:
ECO500-80-R00-000 Life of light 3.source: 20000 hours Lumen
illumination: 4 m 120000 4.lm Outlet aperture: 138MM Rated power
:600W 5.Channel mode :22/27 channels Horizontal scanning :540
degrees (16bit precision scanning) electronic error correction
6.Vertical scanning :270 degree (16bit precision scanning)
electronic error correction Dimming system :0-100% linear
adjustment Focusing system: Linear adjustment of 4 m to 50 m
7.Atomizing system :1 independent atomizing effect, light spot soft
and natural
8.Zoom Angle: Beam 2.7 ~ 40° Staining 4-40° Pattern 4-40° High
speed stroboscopic: 0-30 times/second. Adjustable speed
stroboscopic effect. Strobe macro function
9.Color: 8 colors + white light. Color half color function 10.Color
system: Independent CMY+CTO color mixing system.
11.Fixed pattern: 12 fixed pattern + white light
12.Rotation pattern :7 glass patterns, each glass pattern can be
independent positive and negative rotation
13.Prism system: Standard single 6 row prism and 8 prism, each
prism can be independent positive and negative rotation
14.Macro power: console reset function, self - walk mode, master -
slave mode Display mode: LCD display, button + touch dual operation
mode
15.Control signal: International standard DMX512. With RDM
function, online software upgrade, dial address code
16.Cooling mode: Use axial fan to strengthen cooling 17.Safety
device: with electronic temperature control overheating protection,
overheating system failure electronic temperature control automatic
power protection
18.Appearance material: high temperature resistant plastic Working
environment :-20 degrees, 40 degrees
Operating instruction:
Description of operation panel
Set up:
This equipment can be positioned and fixed by clamp in every
direction of the stage. Locking system makes it easy to fasten to
the bracket. Attention! Two clamps is needed to fix the equipment.
Every clamp is locked by fastener of 1/4 kind. Fastener can only be
locked clockwise. Attention! Fasten a safety string to the
additional hole of side aluminum piece. The secondary accessory can
not hang on the delivery handle. Nip the equipment on bracket.
1.Check if rigging clamp (not including the one inside) damaged or
not? If stand ten times weight as the equipment. Make sure the
architecture can stand ten times weight as all the equipments,
clamps, wirings and other additional fixtures.
2.Screws for clamping must be fixed firmly. Take one M12 screw
(Grade 8.8 or higher) to clamp bracket, and then screw the nuts.
3.Level the two hanging points at the bottom of clamp. Insert
fastener to the bottom, lock the two levers by 1/4 rotating
clockwise; then install another clamp.
4.Install on safety string which stands at least ten times weight
as equipment. Terminal of the accessory is designed for clamps.
5.Make sure pan/tilt lock unlocked or not. Keep the distance more
than 1M from equipment to flammable material or lighting source.
Signal cable connection:
Connect the provided XLR cable to the female 3-pin XLR output of
your controller and the other side to the male 3-pin XLR input of
the moving head. You can chain multiple Moving heads be connected
together through serial linking. The cable needed should be two
core, screened cable with XLR input and output connectors. Please
refer to the diagram below. DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or
is in an electrically noisy environment, such as in a discotheque,
it is recommended to use a DMX terminator. This helps in preventing
corruption of the digital control signal by electrical noise. The
DMX terminator is simply an XLR plug with a 120 Ω resistor
connected between pins 2 and 3,which is then plugged into the
output XLR socket of the last fixture in the chain. Please see
illustrations below.
Key instruction:
The function of the "Left" is the same with the "Right"key:return
to the previous interface. The function of the "Up" and
"Down"key:select,edit The confirm key ("OK" key)":operate,start
editing,exit editing
LED stage lights have a wide range of applications in the
entertainment industry. Here are some key areas where LED stage
lights are commonly used:
Concerts and Live Music Performances: LED stage lights create
dynamic lighting effects that enhance the atmosphere and visual
impact of live music events.
Theater Productions: LED stage lights are utilized to set the mood,
highlight actors or scenes, and create captivating lighting designs
that complement the storytelling.
Dance Performances: LED stage lights are employed to accentuate
dance movements, create vibrant color palettes, and add visual
excitement to dance performances.
Corporate Events and Conferences: LED stage lights are used to
provide professional lighting setups for keynote speeches,
presentations, and product launches, enhancing the overall visual
experience.
Fashion Shows: LED stage lights are utilized to create dramatic and
evocative lighting designs that enhance the runway and showcase the
clothing creations.
Television and Film Productions: LED stage lights are incorporated
into studio setups to provide versatile and controllable lighting
solutions for TV shows, movies, and commercials.
Theme Parks and Attractions: LED stage lights are used to
illuminate rides, shows, and themed areas in theme parks, providing
immersive lighting experiences for visitors.
Nightclubs and DJ Performances: LED stage lights are employed to
create vibrant, energetic lighting displays that synchronize with
the music and enhance the clubbing experience.
Exhibitions and Trade Shows: LED stage lights are utilized to
highlight products, create visually appealing displays, and draw
attention to exhibition booths.
Architectural Lighting Installations: LED stage lights are used to
illuminate iconic buildings, monuments, and landmarks, enhancing
their visual appeal and creating stunning nighttime displays.
These applications demonstrate the versatility and impact of LED
stage lights in various entertainment, commercial, and
architectural settings, ensuring captivating visual ex
