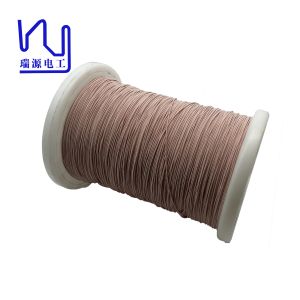

    Buy cheap Custom Ustc Self Bonding Copper Wire White Silk Covered Round Enameled Litz from wholesalers

    Buy cheap Custom Ustc Self Bonding Copper Wire White Silk Covered Round Enameled Litz from wholesalers
    • Buy cheap Custom Ustc Self Bonding Copper Wire White Silk Covered Round Enameled Litz from wholesalers

    Custom Ustc Self Bonding Copper Wire White Silk Covered Round Enameled Litz

    Ask Lasest Price
    Brand Name : Rvyuan
    Model Number : Copper litz wire
    Certification : ISO9001/ISO14001/UL/SGS
    Price : Negotiation
    Payment Terms : Negotiation
    Supply Ability : Satisfy your demand
    Delivery Time : 2-15 workding days
    • Product Details
    • Company Profile

    Custom Ustc Self Bonding Copper Wire White Silk Covered Round Enameled Litz

    Custom USTC White Silk Covered Round Enameled Copper Litz Wire

    Silk covered Litz wire is a high-quality wire with reliable quality, superior performance and wide range of uses. It adopts the design of ultra-fine enameled copper wire, stranding process and covering layer, making it highly flexible and tensile strength, and can provide reliable current conduction and external protection in harsh environments.


    This wire is widely used in electronic equipment manufacturing, communication equipment, automobile manufacturing, aerospace and other industries, and has become an indispensable part of the industrial field.


    Whether you are a novice or a professional, wire-covered copper litz wire can meet your needs and provide excellent performance.


    Description

    Conductor diameter*Strand number

    1USTC-F

    0.05*330

    Single wire

    Conductor diameter(mm)0.050
    Conductor diameter tolerance (mm)±0.003
    Minimal insulation thickness(mm)0.005
    Maximal overall diameter (mm)0.086
    Thermal Class (℃)155

    Strand Composition

    Strand number66*5
    Pitch(mm)29±5
    Stranding directionZ

    Insulation layer

    CategoryPolyester yarn
    UL/
    Material specs(mm*mm or D)300
    Times of Wrapping1
    Overlap(%) or thickness(mm),mini0.02
    Wrapping directionS

    Characteristics

    Max O. D (mm)1.55
    Max pin holes faults/6m36
    Max resistance (Ω/Km at20℃)31.03
    Mini breakdown voltage (V )1300
    Meter per kilogram166

    Key word

    Custom USTC White Silk Covered Round Enameled Copper Litz Wire

    Ruiyuan Company was awarded the "Quality A Supplier" by a German Brand

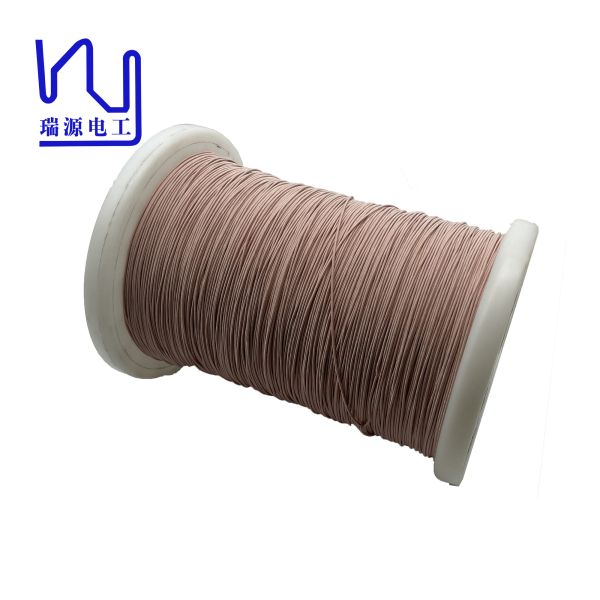

    Quality Custom Ustc Self Bonding Copper Wire White Silk Covered Round Enameled Litz for sale
