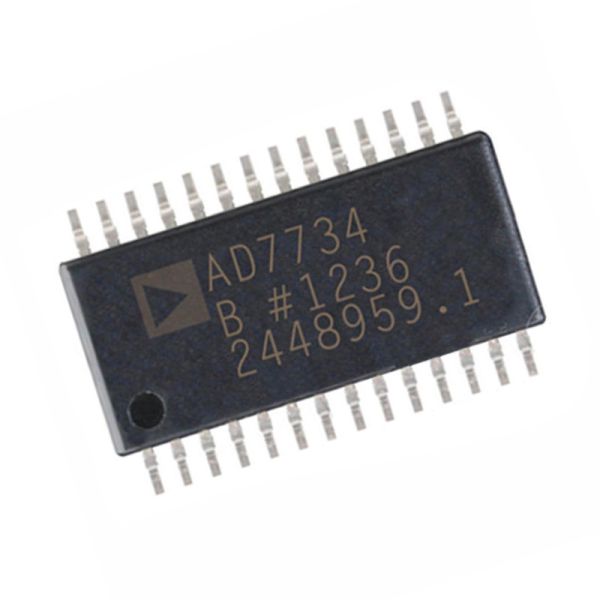

New and Original AD7734BRUZ AD7734 TSSOP-28 IC Integrated Circuit Data Acquisition - Analog to Digital Converters ADC

Good quality Electronic Component provider from China——GS Electronics,

Product Details: AD7734BRUZ

Overview:
The AD7734BRUZ is a highly integrated, precision, 24-bit sigma-delta analog-to-digital converter (ADC) designed by Analog Devices. This versatile ADC offers exceptional performance and functionality, making it an ideal choice for applications that require high-precision measurement of analog signals. From industrial weighing scales and process control systems to medical instrumentation and scientific equipment, the AD7734BRUZ delivers accurate and reliable data conversion.

Key Features:

Exceptional Precision:
The AD7734BRUZ offers a high-resolution 24-bit sigma-delta ADC, providing exceptional precision for accurate measurement of analog signals. This level of precision ensures that even the smallest variations in input voltage are captured and converted with high fidelity. Whether you are measuring low-level sensor signals or performing precise voltage measurements, the AD7734BRUZ delivers outstanding accuracy and resolution.

Programmable Gain Amplifier:
Equipped with a programmable gain amplifier (PGA), the AD7734BRUZ allows for flexible signal conditioning and amplification. The PGA offers gain settings of up to 128x, enabling amplification of weak signals and providing robustness against noise and interference. This programmable gain feature enhances the dynamic range and sensitivity of the ADC, making it suitable for a wide range of measurement applications.

Versatile Input Configuration:
The AD7734BRUZ supports both differential and single-ended input configurations, providing flexibility to accommodate various measurement requirements. In the differential mode, the ADC can handle four differential input channels, allowing for precise measurement of voltage differences. In the single-ended mode, it supports up to seven single-ended input channels, simplifying system design and reducing the need for external signal conditioning circuitry.

Programmable Excitation Current Source:
The AD7734BRUZ features a programmable excitation current source, which simplifies the measurement of resistive sensors such as strain gauges and load cells. The excitation current can be adjusted to suit the specific requirements of the sensor, ensuring optimal measurement performance. This programmable excitation feature enhances the versatility and accuracy of the ADC in various sensor-based applications.

Low Power Consumption:
Designed with low power consumption in mind, the AD7734BRUZ ensures efficient energy usage, making it suitable for power-sensitive applications. The ADC operates with a supply voltage range of +2.7V to +5.25V, providing flexibility in power supply design. The low power consumption extends battery life in portable devices and reduces power requirements in energy-constrained applications.

User-Friendly Interface:
Equipped with a serial peripheral interface (SPI), the AD7734BRUZ offers a convenient and efficient means of communication with microcontrollers, microprocessors, and other digital devices. The SPI interface enables easy integration into existing systems and provides fast and reliable data transfer. This user-friendly interface simplifies system integration and ensures seamless compatibility with a wide range of digital platforms.

Compact and Durable Design:
The AD7734BRUZ features a compact 24-lead TSSOP package, making it suitable for space-constrained applications. The thin shrink small outline package ensures easy integration into small-form-factor devices without compromising performance. Additionally, the robust design of the AD7734BRUZ ensures reliable operation in harsh environments, with an operating temperature range of -40°C to +105°C.

Applications:
The AD7734BRUZ finds applications in various industries and sectors, including:

1. Industrial Weighing Scales: High-precision weighing systems, load cells, and force measurement.
2. Process Control: Level and flow measurement, pressure sensors, and temperature monitoring.
3. Medical Instrumentation: Patient monitoring, biomedical sensors, and diagnostic equipment.
4. Scientific Equipment: Data acquisition systems, research instruments, and laboratory measurement.
5. Industrial Automation: Robotics, motion control, and machine monitoring.
6. Energy Management: Smart metering, power monitoring, and renewable energy systems.

Conclusion:
The AD7734BRUZ is a highly integrated, precision 24-bit sigma-delta ADC that offers exceptional performance and functionality. With its high-resolution, programmable gain amplifier, versatile input configuration, and programmable excitation current source, this ADC is well-suited for a wide range of applications in precision measurement and data acquisition. Experience accurate andreliable data conversion with the AD7734BRUZ from Analog Devices.
