    Horizontal Filter Separator Fuel Oil Purification System For Marine Power Plant

    Ask Lasest Price
    Brand Name : KANGWEI
    Model Number : According to the design and technical demand
    Certification : CCS,BV
    Price : negotiated
    Payment Terms : T/T, L/C
    Supply Ability : 150SETS
    Delivery Time : Negotiate
    • Product Details
    • Company Profile

    Horizontal Filter Separator Fuel Oil Purification System For Marine Power Plant

    Horizontal Filter Separator Fuel Oil Purification System For Marine Power Plant


    1. Application

    Fuel oil system

    Various piping systems, provided for bunkering, storage, transfer, offloading and treatment of fuel oils. The following systems are provided for diesel engines that operate on heavy fuel oils: Fuel oil transfer system, Fuel oil treatment system and Fuel oil supply system.

    - Fuel oil transfer system – This system receives and stores fuel and delivers it to settling tanks. Fuel oils are loaded through deck fill connections that have sample connections provided to permit the fuel to be sampled as it is taken aboard. HFO is loaded in storage tanks fitted with heating coils. In preparation for use, HFO is transferred to the fuel oil settling tanks via FO transfer pumps which are equipped with a suction strainer. Piping is so arranged that the pumps can transfer fuel between storage tanks and then to the deck connections for offloading. Settling tanks are used to permit gross water and solids to settle on the bottom.

    - Fuel oil treatment system – From the settling tanks fuel oil is transferred to the service tanks via FO treatment system. For cleaning of heavy fuel oils (HFO) the two stage process is commonly used. The fuel is heated in a settling tank to about 50-60°C and then is drawn out by the purifier inlet pump. The inlet pump delivers the fuel to a thermostaticallycontrolled heater which raises the fuel temperature to about 80°C, and thence to the centrifugal purifier. The dry purified fuel is then transferred to a centrifugalclarifier by the purifier discharge pump. After clarification the clarifier discharge pump delivers the fuel to the service tank for the engine use.

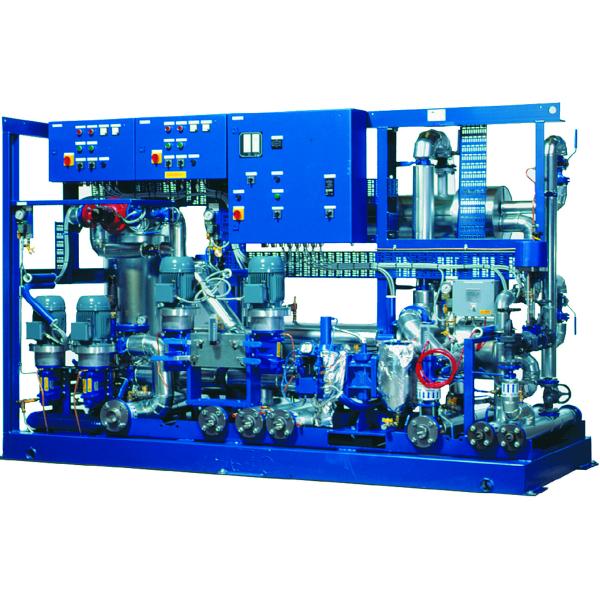

    Image title


    Fuel oil supply module


    - Fuel oil supply system – This system supplies the fuel from the service tank to the diesel engine. The system consists of: a supply flow meter, supply pumps, circulating pumps, preheaters, the final filter, a viscosity controller, a FO venting box.

    The pressurised system is preferable while operating the diesel engine on high viscosity fuels. It can be delivered as a modular unit (fuel oil supply module), tested and ready for service supply connections.

    2. Features and benefits
    separators are designed for automatic operation in periodically unmanned engine rooms at sea and in
    automated power stations ashore.
    • Small footprint, high flexibility
    • Alcap technology
    • High separation efficiency
    • CentriShoot
    • CentriLock
    The CentriLock bowl-locking system uses a lightweight, non-threaded snap ring. This prevents wear by allowing easy
    removal without a sledgehammer.
    • Long service intervals
    • Remote control and monitoring
     Separator unit model parameters
    ModelSM203-S(O)SS(A)203-S(O)SS(A)204-S(O)SS(A)405-S(O)SS(A)309-S(O)DS(A)203-S(O)
    Item
    Separated volumeRated value200015002000300060001500
    (L/H)0# Diesel oil220016002200350065001600
     30# SAE LO.1200800120018003600800
     180Cst/50℃HFO/700110016003500700
    Power(KW)Separator2.21.535.5111.5x2
     Oil feed pump1.51.51.51.52.21.5(1.5x2)
     E-heating//////
     Others0.20.20.20.20.20.2
    Slag discharge wayManual DischargeAuto slge / Auto partial discharge
    Heating waySteam 0.45~0.7MPa / Conduction oil 170~210℃
    Control wayRelayRelay / by PLC auto control
    Machine weight78076078598018301300
    Outline dimension(mm)Length115011501150130017002000(2200)
    Width1150115011501300/18501200
    Height170017001700178020701700
    Interface dimensionFuel oil inlet/DN25/DN25/DN25/DN40/DN40/DN25/
    outlet/DN25/DN20/DN25/DN32/DN40/DN25/
     return oil outletDN25DN20DN25DN32DN40DN25
     Medium inletDN20(DN25)DN20(DN25)DN20(DN25)DN25DN25DN20(DN25)
     Medium outletDN20(DN25)DN20(DN25)DN20(DN25)DN20(DN25)DN25DN20(DN25)
     Control water inletG1/2”G1/2”G1/2”G1/2”G1/2”G1/2”
    Incoming cableCEFR4x2.5CEFR4x2.5CEFR4x2.5CEFR4x4CEFR4x6CEFR4x4
    Alarm output cableCEFR2x0.75 or CEFR10x0.75
    Power supply3φ-380V/50Hz or 3φ-440V/60Hz
     Separator unit model parameters
    ModelDS(A)204-S(O)DS(A)405-S(O)SS(A)203-ESS(A)204-EDS(A)203-EDS(A)204-E
    Item
    Separated volumeRated value200030001500200015002000
    (L/H)0# Diesel oil220035001600220016002200
     30# SAE LO.1200180080012008001200
     180Cst/50℃HFO1100160070011007001100
    Power(KW)Separator3 x25.5 x21.531.5x23 x2
     Oil feed pump1.5(1.5x2)1.5(1.5x2)1.51.51.5(1.5x2)1.5(1.5x2)
     E-heating//3x36x35x3(5x3x2)8x3(8x3x2)
     Others0.20.20.20.20.20.2
    Slag discharge wayAuto slge / Auto partial discharge
    Heating waySteam 0.45~0.7MPa /Conduction oil 170~210℃By electricity
    Control wayRelay/by PLC auto control
    Machine weight1390171580083515501620
    Outline dimension(mm)Length2000(2200)22001150115022002200
    Width120012501150115012001200
    Height170017801700170017001700
    Interface dimensionFuel oil inlet/DN32/DN40/DN25/DN25/DN25/DN32/
    outlet/DN32/DN40/DN20/DN25/DN25/DN32/ DN32
     return oil outletDN32DN40DN20DN25DN25
     Medium inletDN20(DN25)DN25////
     Medium outletDN20(DN25)DN20(DN25)////
     Control water inletG1/2”G1/2”G1/2”G1/2”G1/2”G1/2”
    Incoming cableCEFR4x4CEFR4x6CEFR4x6CEFR4x10CEFR4x16CEFR4x25
    Alarm output cableCEFR2x0.75 or CEFR10x0.76
    Power supply3φ-380V/50Hz or 3φ-440V/61Hz
    Oil Separator unit Parameter Table
    ModelKYDR203CD-21KYDB203DD-21KYDB204DD-21KYDB405SD-21KYDB309SD-21KYDB513SD-21
    Item

    Rated Separater Volume
    (L/H)

    2000150020003000600010000
    Drum
    Rotating
    Speed
    (r/min)
    900094009300910058006200
    Separating Factors(g)12450903799101203470509131
    Engine Power(Kw)2.21.535.51115
    Drive WayHigh-speed Strap
    Start/Stop
    time
    3~5min/10~15min5~8 min/15~20min
    Sludge Discharge
    Way
    Manual DischargeAuto Valve-circled Partial Discharge
    Dirty Oil Input WayIndependent External Pump

    Dirty Oil Input Pressure
    (MPa)

    ~ 0.1
    Purified Oil Output WayConcentric Pump
    Purified Oil output Pressure
    (MPa)
    0.2-0.3
    Controlled-water Pre./Tem.(MPa)/(℃)

    0.02~0.7

    (No requirement)

    0.2-0.3 / 85-95
    Net Weight
    (Kg)
    2682502704009001100

    Outline Dimension
    (mm)LxWxH

    720x450x850710x420x840720x450x850840x510x9301220x800x13001300x900x1450
    Power Supply
    (V/Hz)
    3ф-380V/50Hz, 3ф-440V/60Hz
