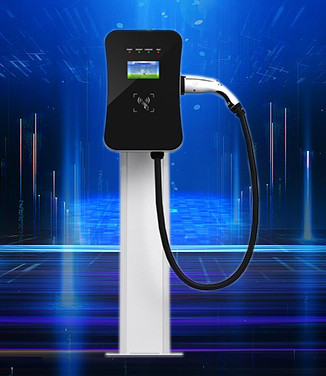

CCS2 Car Charging 1 Phase 32A Wall Box Ev Charger With Phone App
This CCS2 Car Charging 1 Phase 32A Wall Box ev charger is both suitable for homeuse and commercial use, the max output power can reach 16kw to achieve
fast charge. The ev charger design can save more and more space.
This AC EV Charging Stations LQM3W Series also can be applicable
for outdoor installation like parking lot of office building,
hospital, supermarket, Hotel and etc.
Feature
Charging Mode
Plug & Play: If you own a parking area, nobody can touch the
charger, then you can choose the mode "Plug & Play".
RFID Cards: If you want to install the EV charger outside, and
allow other persons get access to the chargers, then you can start
and stop the charging by using the RFID card.
Remote Control by App: Our EV charging station supports the remote
control by mobile App, through OCPP v1.6J. Now we also finished the
development of our own App for home users.
Balancing Management
Full Charging: When there is no other home devices used, the power
is enough for our fully charging;
Automatically Adjusting: when there are other home devices working,
so the main circuit is not enough for the full charging, so the
charger will adjust to reduce the charging capacity.
How it works: The ev charger have a current transformer to detect
the balance current of the circuit and automatically adjust the
charging power, which will make the charging more efficient.
PLC Wireless Communication: EV charging load management is
delivered via a good solution, and this system is in constant
communication with the vehicle charge points and the station’s
power to ensure the safe charging.
Description
| Charging Connector/ plug type | IEC62196-2 /Type 2 | SAEJ1772 /Type 1 |
| AC Power input rating | 1 phase 220V±15% | 3 phase 380V±15% | AC Level 2 240V |
|
| AC Power Output Rating | 3.5KW /16A | 11KW /16A | 3.5KW/16A |
| 7KW/32A | 22KW/32A | 7KW/32A |
| / | 43KW/63A | 10KW/40A |
| Rated Frequency | 50/60HZ |
User interface & control
| Charging control | Plug and charge √ | RFID card √ | CMS operate √ |
| Display Screen | 4.3inch LCD screen |
| Wifi connection | Support √ | OCPP Protocol | 1.6J √ & 2.0.1 √ |
| Ethernet Interface | LAN(RJ-45) √ | APP interface | Support √ |
Moblie APP
The Advantages of the Moile APP:
Current Adjustment Function: You can easily adjust the current by
APP
Flexible Booking Function: The APP supports charging booking to
enable you to automatically start at anytime.
Charging Report Function: All your charging records will be
collected and can be check on the phone.
WIFI Configuration Function: The customers can easily configure the
wifi of the EV charger with the APP.
Charging Mode
Plug & Play: If you own a parking area, nobody can touch the
charger, then you can choose the mode "Plug & Play".
RFID Cards: If you want to install the EV charger outside, and
allow other persons get access to the chargers, then you can start
and stop the charging by using the RFID card.
Remote Control by App: Our EV charging station supports the remote
control by mobile App, through OCPP v1.6J. Now we also finished the
development of our own App for home users.
Balancing Management
Full Charging: When there is no other home devices used, the power
is enough for our fully charging;
Automatically Adjusting: when there are other home devices working,
so the main circuit is not enough for the full charging, so the
charger will adjust to reduce the charging capacity.
How it works: The ev charger have a current transformer to detect
the balance current of the circuit and automatically adjust the
charging power, which will make the charging more efficient.
PLC Wireless Communication: EV charging load management is
delivered via a good solution, and this system is in constant
communication with the vehicle charge points and the station’s
power to ensure the safe charging.
Why choose Lekol?
Compatibility with most global Electric Vehicles charging
interface.
High quality production and design standards for safe and reliable
use with multiple fault protection.
Outdoor applications with waterproof IP65 rated.
Easy installation-wall or floor mounted
Function support: app, Bluetooth, RFID card, Dynamic Load Balance,
ocpp1 6J, MODBUS communication protocol, RS-485, WIFI, LAN (RJ-45).
Low MOQs,fast delivery
ODM&OEM Services Available
