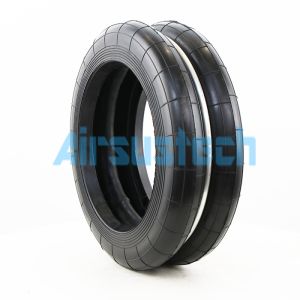

360mm Max Diameter Replace S-300-2R Yokohama Air Spring temperature resistance

F-300-2 Air Rubber Large Equipment 360mm Max Diameter Replace S-300-2R YOKOHAMA Air Spring

Product Description:

Yokohama Air Spring is a high-performance rubber cushion product developed by Yokohama Rubber Co., Ltd. It has excellent temperature resistance and low noise performance, with a temperature range of -40°C to +70°C, and a low noise level of 0.88M Pa. The product size is 35*35*12 CM, and it is supplied without a cover plate. This product is ideal for automotive, aerospace, medical and other applications.

Features:

• Product Name: Yokohama Air Spring
• Package Size: 35*35*12 CM
• Gross Weight: 5.0 KG
• Temperature Range: -40°C To +70°C
• Press Machine Air Spring
• Yokohama Rubber Cushion
• Yokohama Air Cushion

Technical Parameters:

The AIRSUSTECH F-300-2 is a device that provides precision height-adjustment for a variety of applications. It features a design height of 152 mm, a max height of 242 mm, and a minimum height of 82 mm, for a maximum stroke of 120 mm. The maximum diameter of the device is 360 mm, with an effective area of 710 cm² and a volume of 11.2 L. In terms of load capacity, the device is capable of withstanding a load of 34.7 kN. As for the natural frequency, the device is rated at a rate of 1.9Hz. The product features an internal pressure maximum of 0.88 Mpa, and a burst inner pressure of 3.9-4.9 Mpa.

Applications:

Yokohama Rubber Cushion, model F-300-2, is a premium air spring product from AIRSUSTECH, a Guangzhou-based company certified with ISO/TS16949:2009. It is widely used for large equipment, and is known for its low noise, maximum height of 158mm, natural diameter size of 350mm and maximum diameter of 360mm.

YOKOHAMA Air Spring:

Packing and Shipping:

Yokohama Air Spring products are packaged and shipped using approved safety and environmental standards. Our packages are designed to protect the product from damage during transit. We use recyclable materials to ensure the safety and quality of our products.

Our packages are made of a combination of corrugated cardboard, bubble wrap, and foam padding. The cardboard is designed to protect the product from shock and vibration and is printed with the Yokohama Air Spring logo. Bubble wrap is used to cushion the product and keep it safe from any kind of impact. The foam padding is used to fill any empty spaces and provide extra protection.

We package all Yokohama Air Spring products in accordance with the International Safe Transit Association (ISTA) standards. We also use certified carriers to ensure that the products arrive safely and on time. All shipments are tracked, and we provide our customers with tracking numbers upon request.
