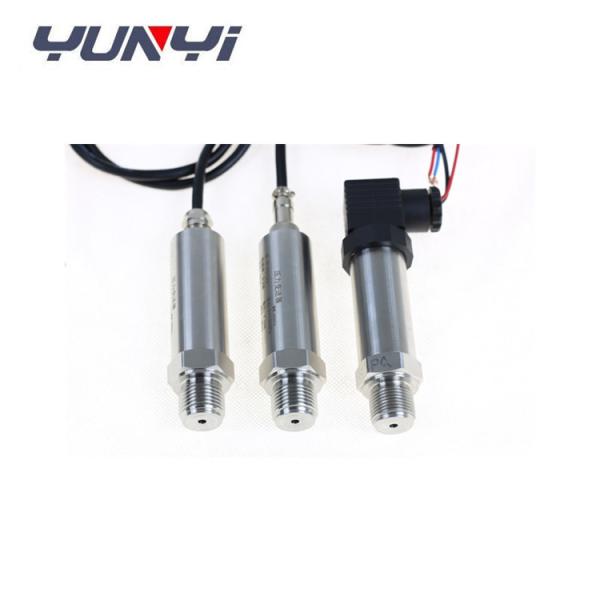

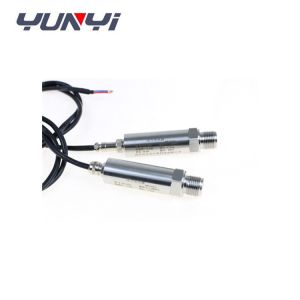

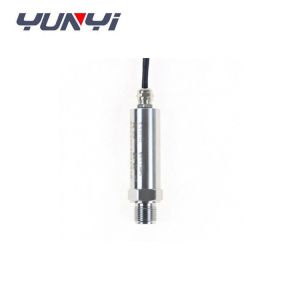

Industrial 5V Pneumatic Pressure Transducer With DIN Connector

Name: Industrial 5V Pneumatic Pressure Transducer With DIN Connector
Brand: Yunyi
Price: 28 USD

Ask Lasest Price
Brand Name :	Yunyi
Model Number :	YD31
Certification :	CE
Price :	USD28-USD40/PC
Payment Terms :	T/T, Western Union, D/A, D/P
Supply Ability :	500PCS/W
Delivery Time :	7 days

Add to Cart

Product Details
Company Profile

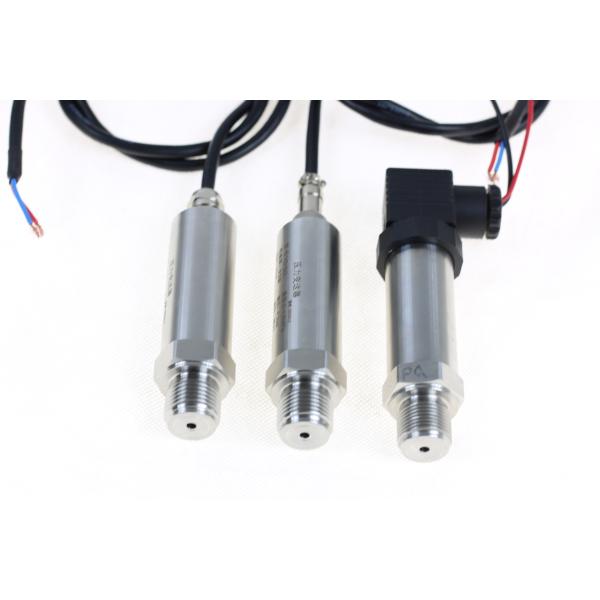

Industrial 5V Pneumatic Pressure Transducer With DIN Connector

Industrial Field 0-5v Air Pressure Transducer Sensor With DIN Connector

Description 0-5v Air Pressure Transducer Sensor

YD31 pressure transmitter is a series pressure transmitter of our standard transmitter.Imported chip assembly, reflecting a world-class pressure

transmitter technology.Compact, rugged. Light weight, easy to install. Easy to use. Maintenance-free. Zero outside the range can be continuously adjusted, a wide range of migration. Suitable for a variety of occasions in harsh environments and corrosive media.

Specification 0-5v Air Pressure Transducer Sensor

Measure Range	-100kPa~0.....10kPa...100MPa
Pressure Type	gauge (G), absolute (A), sealed gauge (S)
Overpressure	150%FS
Accuracy	0.2%FS, 0.5%FS
Output signal	4-20mA(2-wire), 0-5V;1-5V;0.5-4.5V;0-10V(3-wire)
Supply	12-36Vdc,12~36Vdc;15~30Vdc;15~36Vdc;15~36Vdc;5Vdc
Temp.coefficient of zero	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Temp.coefficient of span	±0.02%FS/°C(typ.) ±0.03%FS/°C(max.)
Compensated temperature range	-10~+70°C
Operating temperature range	-40~+125°C
Storage temperature range	-40~+125°C
Insulating resistance	≥100MΩ@100Vdc
Load resistance	R≤(U-15)/0.02 (for 4/20mA) R>100kΩ(for voltage output)
Electrical interface	DIN43650, option 1.5m cable connetion
Pressure interface	G1/2,M20x1.5,G1/4, 1/4NPT, 1/2NPT(customer request)
Material of pressure membrane	316L stainless steel
Material of housing	1Cr18Ni9Ti stainless steel
Response time(10%~90%)	≤10ms
Shock/impact	10gRMS,(20~2000)Hz/100g,11ms
Protection	IP65

Features 0-5v Air Pressure Transducer Sensor

1. DigitalASIC, accuracy and stability

2. Drift affect small

3. Excellent long-term stability

4. Excellent anti-jamming capability

5. Overvoltage overcurrent protection, reverse polarity protection
