Description lab equipment meter calibration air hand pump pressure
calibrator

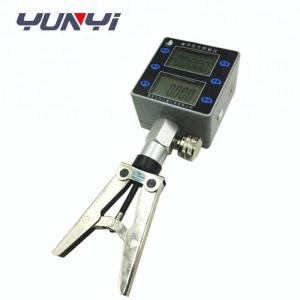

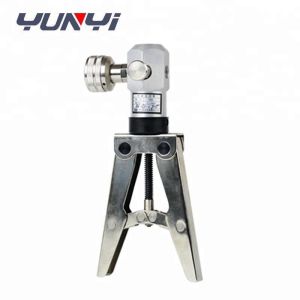

Pressure pump is a portable handheld pressure pump. Instruments for
testing various types of pressure calibration instrumentation and
control room on-site installation of industrial processes used.
Pressure source is also available for the pressure measurement
instruments factory calibration. Within each Where 60Mpa type
pressure transmitters, pressure sensors and a variety of pressure
gauges
Specification lab equipment meter calibration air hand pump
pressure calibrator
1 Output pressure: -0.1-2.5Mpa
2 Working environment:
a: Temperature: 0 ~ 40 °C b: Relative humidity: ≤ 100%
3 Weight: ≤ 0.8Kg
4 Table connector thread: M14 × 1.5 thread (exports by 1/4NPT),
high-pressure hose connector thread: M20 × 1.5 thread (exports by
1/2NPT) requirements
| Model number | range | Medium |
| Y039 | 0-1.6Mpa | barometric pressure |
| Y061 | -0.1-0Mpa | barometric pressure |
| Y060 | 0-25Mpa | Hydraulic pressure |
| YFP-1.6 | -0.1-1.6Mpa | barometric pressure |
| YFP-2.0 | -0.1-2.0Mpa | barometric pressure |
| YFP-2.5 | -0.1-2.5Mpa | barometric pressure |
| XYSB60 | 0-60Mpa | Hydraulic pressure |
Features lab equipment meter calibration air hand pump pressure
calibrator
1. Portable, light weight,,Suppression of light.Easy to use Structural design pressure fine-tuning hand,Rotate the fine-tuning hand can easily change the output pressure.Also comes with a high-pressure hose connection is timing ,Meter connector connect pressure gauge .
2. Hand pressure pump is the handle, the piston rod. Through gas, pump
cover, put the oil hand, fine-tuning hand, form joint, etc .rotation.
