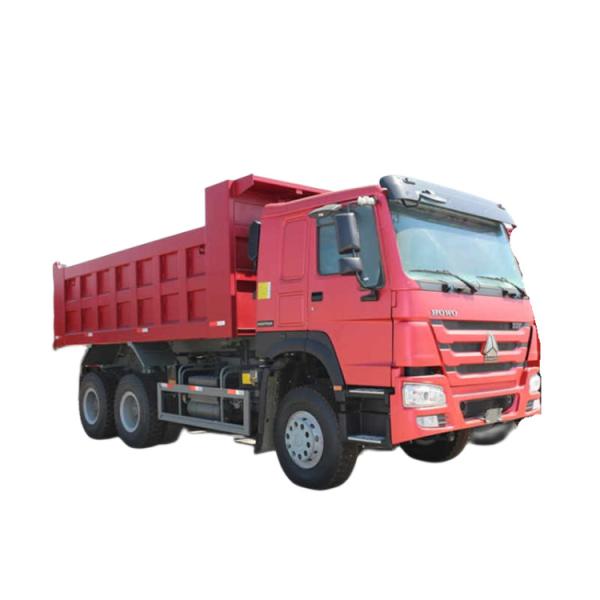

SINOTRUK HOWO Dump Truck 336HP 6X4 10 Tire For Construction Site

Name: SINOTRUK HOWO Dump Truck 336HP 6X4 10 Tire For Construction Site
Brand: SINOTRUK
Price: 1 USD

Add to Cart

SINOTRUK HOWO Dump Truck 336HP 6X4 10 Tire Dump Truck For Construction Site

Product parameters

Model	ZZ3257N3447A1
Cabin	Four point s suspension HW76 Cabin with spring and air shock absorber, A/C, Adjustable steering, Sun cover, Safety belt
Engine	Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:	WD615.69	STEYR technology(CNHTC)
	Engine power	336HP/247kW
	Displacement(L):	9.726liter (Euro 2 standard)
	Max torque:	1350NM@1100-1600rpm
	Bore/stoke:	126mm/130mm
	Fuel consumption	198g/kW.h
Gear box	CNHTC	Max torque:1900NM
	Model:	HW19710
	Speed:	10speed, 2reverse
Axle(front/rear)
Front axle	HF9 front steering axle
Tandem	HC16 double reduction hub reductor driving axle
Clutch	D430 diaphragm type clutch
Brake	Service brake: Dual lines air brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake(EVB)
Steering	Driver sit at the Left hand side
Electric Equipment
	Operating voltage:		24Vnegative grounded
	Starter:		24V,5.4KW
	Alternator		28V,758W
	Battery voltage		12V/135Ah
Frame	Strengthen steel frame, designed according to tough road condition.
Tyre	10+1 spare tyre with rim
	12.00R20 radial tyre
Suspension system: Strengthen heavy duty Leaf spring type
	Front/Rear		10/12
Dump body: type of body :
Inside size of Body(mm): 5200x2300x1500, 8mm (floor) x 6mm (side),made of high intensity steel
Lifting type: Middle lifter T type hydraulic system
Overall dimension(mm): 8034x2496x3170 (Length x width x height)
Wheelbase	3425+1350mm
Track:
	Front/Rear		2022/1830
	Approach/Departure angle		19/25
	Front /Rear overhang		1500/1739
	Max speed		75km/h
Kerb weight:	12170kg

Photo Shows
