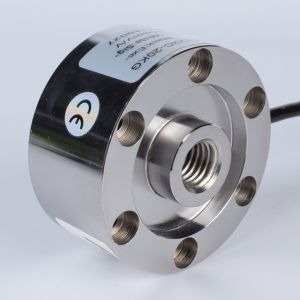

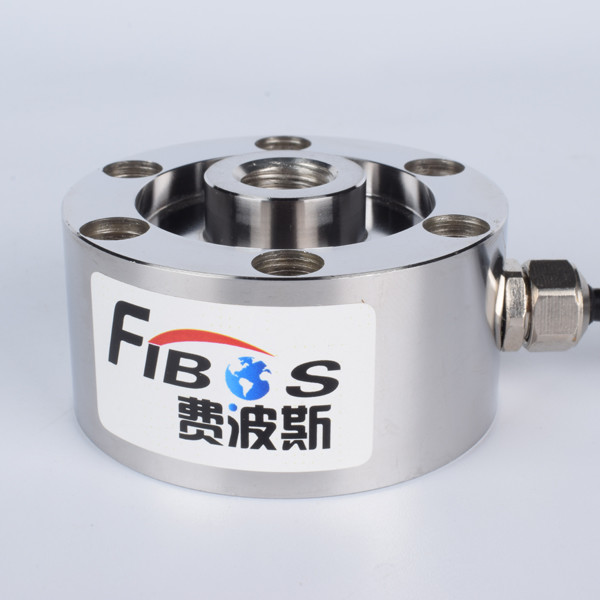

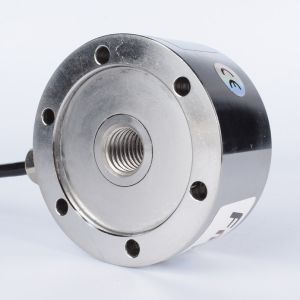

50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load
Cell
1. Descriptions
50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load
Cell FA122C is a model of our brand FIBOS FA1-Series, Spoke Type
Load Cell FA122C can be used to measure load ranges from
50kg,100kg,200kg up to 500kg capacity, its Cable size is ⌀4x3m and
its material is Stainless steel, its Rated output range is
1.5~2.0mV/V.
2. Specifications
| Product name | Spoke Type Load Cell |
| Capacity | 50,100,200,500kg |
| Rated output | 1.5~2.0mV/V |
| Zero Balance | ±1%mV/V |
| Creep(30min) | ≤0.05%F.S. |
| Non-linearity | ≤0.1%F.S. |
| Hysteresis | ≤0.2%F.S. |
| Repeatability | ≤0.1%F.S. |
| Input impedance | 780±20Ω |
| Output impedance | 700±5Ω |
| Temp.effect on output | 0.05%F.S./10 ℃ |
| Temp.effect on zero | 0.05%F.S./10 ℃ |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 10V |
| Maximum excitation | 15V |
| Compensated Temp Range | -10~60 ℃ |
| Operating Temp Range | -20~80 ℃ |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | ⌀4x3m |
| Material | Stainless steel |
3. Dimension
4. Application
50kg 100kg 200kg 500kg ≤0.1%F.S. Stainless Steel Spoke Type Load
Cell FA122C can be applied for all kinds of electronic weighing equipment.
