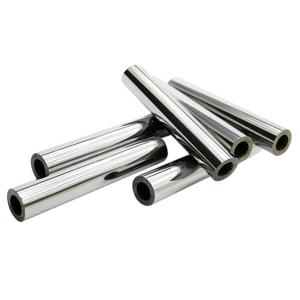

Fixed Length Tungsten Carbide Round Stock Hardness HV30 1620

    Buy cheap Fixed Length Tungsten Carbide Round Stock Hardness HV30 1620 from wholesalers

    Buy cheap Fixed Length Tungsten Carbide Round Stock Hardness HV30 1620 from wholesalers
    • Buy cheap Fixed Length Tungsten Carbide Round Stock Hardness HV30 1620 from wholesalers
    • Buy cheap Fixed Length Tungsten Carbide Round Stock Hardness HV30 1620 from wholesalers

    Fixed Length Tungsten Carbide Round Stock Hardness HV30 1620

    Ask Lasest Price
    Brand Name : OUQI
    Model Number : Ground carbide rods
    Certification : ISO9001:2008 ISO14001:2004
    Price : negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5000kgs per month
    Delivery Time : Standard products in one week
    • Product Details
    • Company Profile

    Fixed Length Tungsten Carbide Round Stock Hardness HV30 1620

    Hardness 1620 with high fracture toughness 9.9 ground carbide rods K15-K20


    Diameter:14mm h6

    Length: 100mm +0.5


    ClassificationK15-K20
    Co %6
    WC incl. doping94
    Density g/ cm314.95
    Hardness HV301620
    Fracture toughness9.9
    Transverse rupture strength3200
    Average grain size1.2


    Regular size for ground carbide rods:


    Diameter (mm)Length (mm)Diameter (mm)Length (mm)
    DToleranceLengthTol.DToleranceLengthTol.
    1.00+0/-0.0063300/+0.510.50+0/-0.0113300/+0.5
    1.503300/+0.511.003300/+0.5
    2.003300/+0.511.503300/+0.5
    2.503300/+0.512.003300/+0.5
    3.003300/+0.512.503300/+0.5
    3.503300/+0.513.003300/+0.5
    4.003300/+0.513.503300/+0.5
    4.50+0/-0.0083300/+0.514.003300/+0.5
    5.003300/+0.514.503300/+0.5
    5.503300/+0.515.003300/+0.5
    6.003300/+0.515.503300/+0.5
    6.503300/+0.516.003300/+0.5
    7.003300/+0.518.003300/+0.5
    7.503300/+0.520.003300/+0.5
    8.00+0/-0.0093300/+0.522.003300/+0.5
    8.503300/+0.524.003300/+0.5
    9.003300/+0.525.00+0/-0.0133300/+0.5
    9.503300/+0.528.003300/+0.5
    10.003300/+0.530.003300/+0.5
    32.00+0/-0.0163300/+0.5

    General Tolerance for ground carbide rods

    General tolerance for the h6 finished ground solid carbide rods
    DiameterTolerance μmLengthToleranceStraightnessToleranceCircularityTolerances
    ＜3.0-6/0＜100.0+0.5/+1.0＜4.00.07<3,02,0 micron
    3.0-6.0-8/0100.0-165.0+1.0/+2.54.5-5.00.063,0- 6,02,5 micron
    6.0-1.0-9/0165.0-335.0+1.0/+6.05.5-120.056,1-10,03,0 micron
    10.0-18.0-11/0＞12.50.0410,1-18,03,5 micron
    18.0-30.0-13/018,1- 30,04,0 micron
    30.0-50.0-16/030,1- 50,05,0 micron

    General tolerance for the h5 finished ground solid carbide rods
    DiameterTolerance μmLengthToleranceStraightnessToleranceCircularityTolerances
    ＜3.0-4/0＜100.0+0.5/+1.0＜4.00.07<3,02,0 micron
    3.0-6.0-5/0100.0-165.0+1.0/+2.54.5-5.00.063,0- 6,02,5 micron
    6.0-1.0-6/0165.0-335.0+1.0/+6.05.5-120.056,1-10,03,0 micron
    10.0-18.0-8/0＞12.50.0410,1-18,03,5 micron
    18.0-30.0-9/018,1- 30,04,0 micron
    30.0-50.0-11/030,1- 50,05,0 micron

    Our tungsten carbide rods:

    • 100% virgin material, no recycled material
    • Spray drying tower and HIP sintering furnace
    • Constant excellent quality
    • Large stock for all sizes, the regular products can be shipped in 3 days, and the special rods can be ground in one week.
    • 100% inspected before delivery. The inspection including raw material and dimension report will be sent you before delivery
    • Excellent grinding quality, Straightless and circularity could be 0.05 or 0.02.

    Carbide grades

    What we can provide
