E116921 PHiliph VS2+ Patient Monitor Parts Power Supply Board

E116921 PHiliphh VS2+ Patient Monitor Power Supply Board

PHiliphh VS2+ patient monitor Brief Introduction

The vision is believable when it comes to the enhanced SureSigns VS2+ display. With features designed to easily measure vital signs, VS2+

gives your staff the flexibility and freedom they need to spend more time with their patients. From an easy-to-read display area and large buttons

to new volume waveform displays and intuitive navigation, VS2+ gives you the information you need, when you need it. and maximize bedside

time With wireless capabilities and data export in HL7 format, the VS2+ offers reliability, peace of mind, and records patients in record time.

Power supply Board

The monitor contains a medical grade power supply module and circuitry to convert the AC line (100 V to 240 V) to DC power (15 V). Power

consumption is < 25 W.

The power management module includes:

• Li+ battery

– 10.8 V to 11.1 V

– 2200 mAH

• smart battery charger

• DC converter

Power management circuitry charges the Li-Ion battery through a smart battery charger. Both the battery and the AC/DC power module can

power the system through several DC/DC converters that provide the various voltage outputs required by the various chips. An isolation

transformer provides power to the front-end float area.

Power problem

Removing the power supply

1. Separate the front panel from the rear case assembly

2. Disconnect the power input assembly cable.

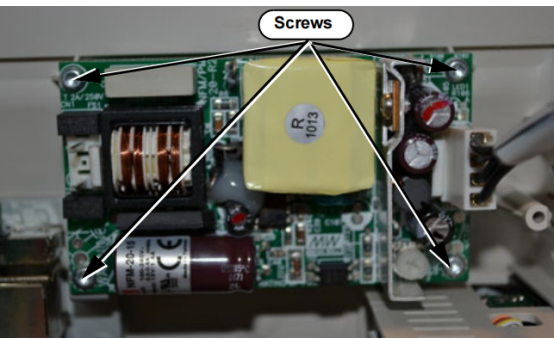

3. Remove the four Torx T10 screws and remove the power supply from the rear housing.

Thank you so much for your attention .If you're interested in E116921 PHiliphh VS2+ Patient Monitor Power Supply Board ,feel free to contact us .Thank you .
