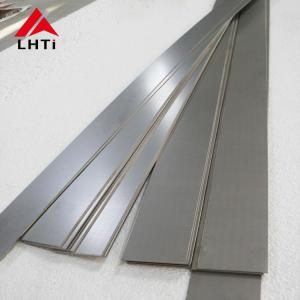

Gr2 Gr5 Gr7 Titanium Plate Sheet
1. Specifications:
Titanium Plate Property
Titanium plates and titanium have the same natural properties.
Its features: lightweight, high strength, metallic luster, and good
corrosion resistance.
Titanium plate standard
China Standard : GB / T3621-2007, GB / T13810-2007,
USA Standard: ASTM B265, ASTM F136, ASTM F67,
(AMS4911 is Ti-6AI-4V annealed titanium alloy plate, sheet, and
strip)
titanium plate Specification
Common size:
T 0.5-5.0mm x W1000mm x L 2000-3500mm
T 5.0- 30mm x W1000-2500mm x L 3000-6000mm
T 30- 80mm x W1000mm x L 2000mm
Product name type | Titanium plate/Titanium sheet |
Titanium Type | pure titanium |
Titanium Grade | |
Width | 50-3000mm |
Length | Cut available |
Technique | Hot Rolled & Cold Rolled |
Thickness | 0.3~100mm |
Shape | Plate/Coil |
Standard | ASTM B265 / ASME 265/ AMS 4911 /ASTM F67 / ASTM F136/ISO 5832-2 /
ISO 5832-3 |
Condition | R(Hot Working) Y(Cold Working) M(Annealed) |
Application | electrolysis |
| Product name | Gr2 Gr12 titanium plate/Ti-0.2Pd |
| Material grade | Gr1, Gr2, Gr4, Gr5,Gr7, Gr9, Gr23, TI-6Al4v, |
| Certificate | ISO9001:2008, TUV, material test certificate EN10204.3.1 |
| Standard | ASTM B265,ASME SB265,AMS4911,ASTM F136,ASTM F67 |
| Technique | Hot/cold rolled |
| Surface | Acid wash, polished |
| Dimensions | Thickness:0.3-100mm |
| Width:20-1220mm |
| Length:500-6000mm |
Application:(Titanium plate)
1. Heat exchangers and condensers
2. Seawater desalination industry
3. Chemical Industry,
4. Electroplating equipment
5. Precision instruments
6. Environmental protection equipment
7. Auto industry
8. Medical and Sports industry
9. Electric power industry
2. Product Description
3. Chemical requirements
Chemical requirements of titanium plate
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr 3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | bal |
| Gr 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
