1-port 10/100/1000M TX to 1-port 100/1000M SFP Slot POE Media
Converter
Overview
This NF-PSE6301-SFP series Media Converter are 10/100/1000Base-TX
to 100/1000Base-FX Power over Ethernet(PoE) devices that serve as
Power Sourcing Equipment(PSE).which allows the converter to provide
power to IEEE802.3af/at PoE standard-compliant Powered Devices(PDs)
using the twisted pair connection. Power transmitted along with
data in one single cable(RJ45) allows you to expand your network
where there are no power lines or outlets. Where you wish to
devices such as Wifi Aps. IP Cameras or IP Phones.etc.
Features
1,Support 1000Mbps half-duplex/full-duplex mode and auto MDI/MDIX;
2,With PoE supported to save power infrastructure cost;
3,SFP port can plug into 1.25G SFP module, support single-mode and
multi mode, optical fiber transmission distance support 0-120KM;
4,Support IEEE 802.3u 100Base-TX,IEEE802.3 af/at standard;
5,Support LFP (Link fault pass)；Support FCL (Flow control)；
6,No storage and forward technology, without delay;
7,Plug and play, no other software and transfer agreement needed;
8,Stand alone unit with mini design;
9,Built-in splicing slot, with magnet and hanger, unique and
integrated design, wall-mounted, splicing and desktop installations
available, which suits in all kinds of engineering installation.
Specification
| Standard | IEEE802.3i 10BASE-T |
| IEEE802.3u 100BASE-TX |
| IEEE802.3z 1000BASE-TX |
| IEEE802.3x Flow Control |
| IEEE802.3af/at Power over Ethernet |
| PoE power | 15.4W per port (IEEE802.3af) 25.5W per port (IEEE802.3at) |
| Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and
7/8(-) |
| Cable: UTP cat.5 or higher |
| Fiber type | Multi mode(MM): 62.5/125m.50/125m |
| Single mode(SM): 9/125m |
| Distance | Multi mode & Dual Fiber 550M(850nm); 2km(1310nm) |
| Single mode & Single Fiber:20/40/60/80/120KM |
| Data rate | 10/100/1000Mpbs |
| Connector | 1 RJ45 +1 SFP port |
| Wavelength | 1310nm 1490nm 1550nm |
| Diagnostic LED | Power Link/Activity |
| Power | DC52V/0.7A/36W |
| Power Consumption | <3w |
| Temperature | 0~50℃(Operating) -20~70℃(Storage) |
| Humidity | 5%~90% |
| Dimension | 90x70x26mm |
Connection Diagram

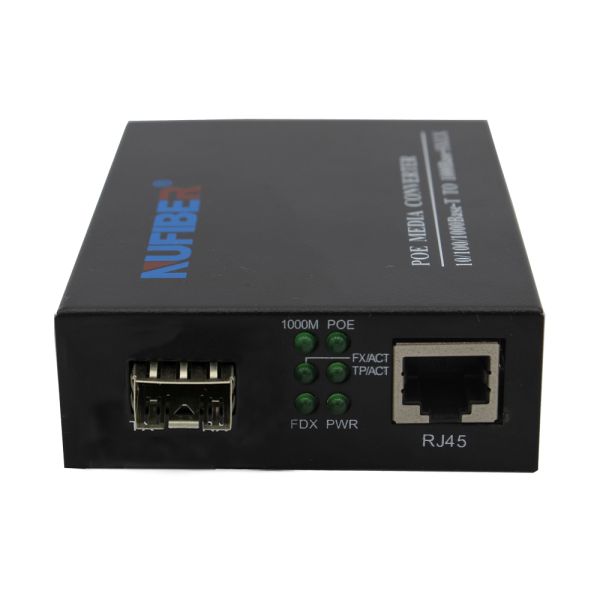

Products Show
Ordering Information
| Model | Description | Fiber Mode | Wavelength | Distance | Connector |
| NF-PSE5201-C02 | 10/100Base-Tx to 100Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm |
| NF-PSE5201-S20 | 10/100Base-Tx to 100Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201-S20A/B | 10/100Base-Tx to 100Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| Tx:1550nm/Rx1310nm |
| NF-PSE5201-SFP | 10/100Base-Tx to 100Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |
| NF-PSE5201G-C02 | 10/100/1000Base-Tx to 1000Base-FX | MMF | TRx:850nm | 2km | SC |
| or TRx:1310nm |
| NF-PSE5201G-S20 | 10/100/1000Base-Tx to 1000Base-FX | SMF | TRx:1310nm | 20 km | SC |
| NF-PSE5201G-S20A/B | 10/100/1000Base-Tx to 1000Base-FX | SMF | Tx:1310nm/Rx1550nm | 20 km | SC |
| NF-PSE6301-SFP | 10/100/1000Base-Tx to 100/1000Base-FX | SFP | 850nm/1310nm/1550nm | 0~120km | LC/SC |
