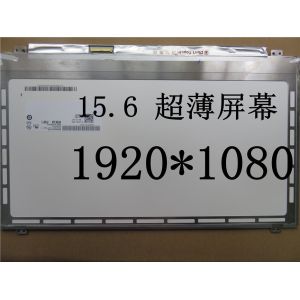

    N156HGE-LA1 CHIMEI Innolux 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : N156HGE-LA1
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 100PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    N156HGE-LA1 CHIMEI Innolux 15.6" 1920(RGB)×1080 300 cd/m² INDUSTRIAL LCD DISPLAY

    Chimei Innolux N156HGE-LA1 Application Features

    Basic Information :BrandModel 2 CompatibleTypeModel Alias
    N156HGE-LA1a-Si TFT-LCD , LCMCMN15B9
    Reliability :RoHSOperating TemperatureStorage TemperatureVibration Resistance
    0 ~ 50 °C-20 ~ 60 °C

    Chimei Innolux N156HGE-LA1 Mechanical Features

    Panel Size :15.6 inch
    Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
    1920(RGB)×1080, FHDRGB Vertical Stripe0.05975×0.17925 mm0.17925×0.17925 mm [141PPI]
    Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
    344.16×193.59 mm-359.5×223.8 mm3.05/3.2 (Typ./Max.) mm
    Outline Features :Form StyleAspect RatioOrientationShape Style
    Flat Rectangle16:9 (W : H)Landscape typeSlim (PCBA Flat, T≤3.2mm)
    Fixation :Face mounting holes (8 pcs) on up, down slugs
    Other Features :Panel CoverWeightSurface
    -355/370g (Typ./Max.)Antiglare, Hard coating (3H)

    Chimei Innolux N156HGE-LA1 Optical Features

    Basic Information :BrightnessOperating ModeContrast Ratio
    300 cd/m² (Typ.)TN, Normally White, Transmissive600:1 (Typ.) (Transmissive)
    Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
    45/45/20/45 (Typ.)(CR≥10)6 o'clock3/8 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
    6485K262K (6-bit)X:0.313; Y:0.329
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    60%81%62%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    62%45%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Luminance Variation :1.25 (Max.)(5 points)

    Chimei Innolux N156HGE-LA1 Interface Features

    Signal Electrical :Current InputVoltage InputConsumption
    491/535mA (Typ./Max.)3.3V (Typ.)1.35W (Max.)
    Interface Features :PositionTypeInterface
    ConnectorLVDS (2 ch, 6-bit)
    Signal Interface :BrandModelAmountPin PitchPinsPin Assignment
    I-PEX20455-040E-121 pcs0.5 mm40 pinsLVDS-40P2C6B-010C

    Chimei Innolux N156HGE-LA1 Backlight Features

    Backlight Features:TypePositionShapeAmountLife(Hours)Replacement
    WLEDEdge light type6 strings6 strings12K(Min.)-
    Interface Features :PositionTypeWLED Driver
    -Included in panel signal interfaceWith LED Driver
    Driver Electrical :Current InputVoltage InputConsumption
    392/425mA (Typ./Max.)6.0/12.0/21.0V (Min./Typ./Max.)5.1W (Max.)

    Chimei Innolux N156HGE-LA1 Packing Features

    Package Carton :AmountWeightCarton Size
    20 pcs / box11.36 Kgs500×370×270 mm (L×W×H)

      FAQ:
      Q1: What's the quality of your LCD Panel?
      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
      Q2: What is your return and refund policy?
      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
      Q3: How long is the lead time?
      A: The lead time is about 1-3 working days after receipt of payment.
      Q4: How can I get the quotation?
      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
