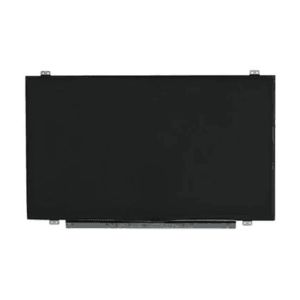

N156BGE-L41 CHIMEI Innolux 15.6" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

    Buy cheap N156BGE-L41 CHIMEI Innolux 15.6

    Buy cheap N156BGE-L41 CHIMEI Innolux 15.6
    • Buy cheap N156BGE-L41 CHIMEI Innolux 15.6
    • Buy cheap N156BGE-L41 CHIMEI Innolux 15.6
    • Buy cheap N156BGE-L41 CHIMEI Innolux 15.6

    N156BGE-L41 CHIMEI Innolux 15.6" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : N156BGE-L41
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 500PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    N156BGE-L41 CHIMEI Innolux 15.6" 1366(RGB)×768 200 cd/m² INDUSTRIAL LCD DISPLAY

    Chimei Innolux N156BGE-L41 Application Details

    Basic Info :Panel BrandPanel ModelN156BGE-L41 26 Compatible
    Diagonal Size15.6"Application
    Panel Typea-Si TFT-LCD , LCMModel AliasCMO15AB
    Reliability :Operating Temp.0 ~ 50 °CStorage Temp.-20 ~ 60 °C

    Chimei Innolux N156BGE-L41 Mechanical Details

    Pixel Features :Pixel Format1366(RGB)×768 [WXGA]Dot Pitch0.084×0.252 mm (H×V)
    ConfigurationRGB Vertical StripePixel Pitch0.252×0.252 mm (H×V) [100PPI]
    Mechanical Size :Display Area344.232×193.536 mm (H×V)Bezel Area347.36×196.59 mm (H×V)
    Outline Dim.359.5×223.8 mm (H×V)Outline Depth3.5/3.8 (Typ.Max.) mm
    Outline Features :Form FactorFlat RectangleOrientationLandscape type
    Aspect Ratio16:9 (H:V)Shape StyleFlat (PCBA Flat, T3.4~4.0mm)
    Holes & Brackets :Face mounting holes (8 pcs) on up, down slugs
    Other Features :Weight410±15gSurfaceGlare (Haze 0%), Hard coating (3H)

    Chimei Innolux N156BGE-L41 Optical Details

    Basic Information :Brightness200 cd/m² (Typ.)Contrast Ratio650:1 (Typ.) (Transmissive)
    Viewing Angle45/45/20/45 (Typ.)(CR≥10)Optical ModeTN, Normally White, Transmissive
    Viewing Direction6 o'clockResponse Time3/7 (Typ.)(Tr/Td) (ms)
    Color Performance :ChromaticityWx:0.313; Wy:0.329Color Numbers262K (6-bit)
    Color Temperature6485KWhite Uniformity1.11/1.25 (Typ./Max.)(5 points)
    1931 Color Gamlt :NTSC Ratio45%sRGB63% coverage
    Adobe RGB47% coverageDCI-P347% coverage
    Rec.202033% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Chimei Innolux N156BGE-L41 Backlight Details

    Back-light Features:Lamp Shape-Lamp TypeWLEDLife Time12K(Min.) (Hours)
    Replacement-Amount-PositionEdge light type
    Lamp Electrical :Voltage Input30.8/31.9/33.0V (Min./Typ./Max.)Current Input56.63/62.99/66.15mA (Min./Typ./Min.)
    Consumption1.75/2.01/2.18W (Min./Typ./Max.)
    Interface Features :TypeIncluded in panel signal interfacePosition-Lamp DriverWith LED Driver
    Driver Electrical :Voltage Input6.0/12.0/21.0V (Min./Typ./Max.)Current Input171/197/214mA (Min./Typ./Max.)
    Consumption2.57W (Max.)

    Chimei Innolux N156BGE-L41 Interface Details

    Signal Systerm :LVDS (1 ch, 6-bit)Logic Voltage-
    Signal Electrical :Voltage Input3.3V (Typ.)Current Input270/320mA (Typ./Max.)
    Consumption1.86W (Typ.)
    Interface Features :TypeConnectorPosition
    Connector Detail :BrandModelPin PitchPinsAmountConfiguration
    I-PEX20455-040E-120.5 mm40 pins1 pcsLVDS-40P1C6B-060C

      FAQ:
      Q1: What's the quality of your LCD Panel?
      A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
      Q2: What is your return and refund policy?
      A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
      Q3: How long is the lead time?
      A: The lead time is about 1-3 working days after receipt of payment.
      Q4: How can I get the quotation?
      A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
