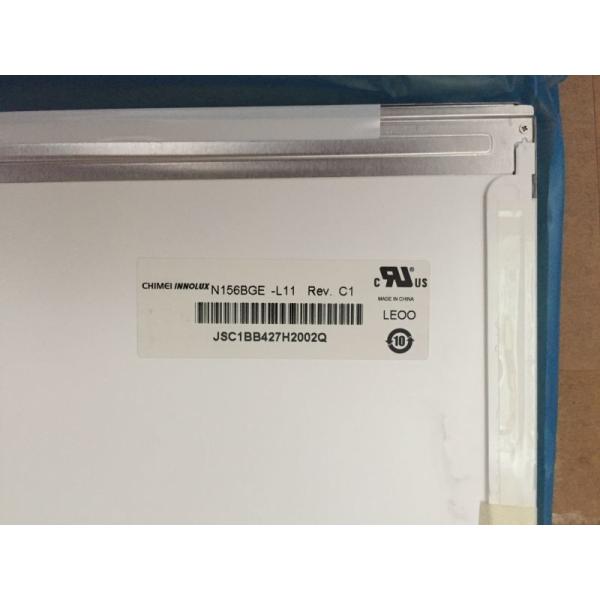

N156BGE-L11 CHIMEI Innolux 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

    Buy cheap N156BGE-L11 CHIMEI Innolux 15.6

    Buy cheap N156BGE-L11 CHIMEI Innolux 15.6
    • Buy cheap N156BGE-L11 CHIMEI Innolux 15.6
    • Buy cheap N156BGE-L11 CHIMEI Innolux 15.6
    • Buy cheap N156BGE-L11 CHIMEI Innolux 15.6
    • Buy cheap N156BGE-L11 CHIMEI Innolux 15.6

    N156BGE-L11 CHIMEI Innolux 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : N156BGE-L11
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 100PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    N156BGE-L11 CHIMEI Innolux 15.6" 1366(RGB)×768 220 cd/m² INDUSTRIAL LCD DISPLAY

    Chimei Innolux N156BGE-L11 Application Features

    Basic Information :BrandModel 64 CompatibleTypeModel Alias
    N156BGE-L11a-Si TFT-LCD , LCMCMO15A3
    Reliability :RoHSOperating TemperatureStorage TemperatureVibration Resistance
    0 ~ 50 °C-20 ~ 60 °C

    Chimei Innolux N156BGE-L11 Mechanical Features

    Panel Size :15.6 inch
    Pixel Features :ResolutionPixel ArrangementDot Pitch (W×H)Pixel Pitch (W×H)
    1366(RGB)×768, WXGARGB Vertical Stripe0.084×0.252 mm0.252×0.252 mm [100PPI]
    Mechanical Size :Active Area (W×H)Bezel Area (W×H)Outline Dimension (W×H)Outline Depth
    344.232×193.536 mm349.58×198.29 mm359.3×209.5 mm5.2/5.5 (Typ./Max.) mm
    Outline Features :Form StyleAspect RatioOrientationShape Style
    Flat Rectangle16:9 (W : H)Landscape typeWedge (PCBA Bent, T≥5.2mm)
    Fixation :Side mounting holes (8-M2) on left, right bezel
    Other Features :Panel CoverWeightSurface
    -430/445g (Typ./Max.)Antiglare, Hard coating (3H)

    Chimei Innolux N156BGE-L11 Optical Features

    Basic Information :BrightnessOperating ModeContrast Ratio
    220 cd/m² (Typ.)TN, Normally White, Transmissive500:1 (Typ.) (Transmissive)
    Viewing Angle(L/R/U/D)Viewing DirectionResponse Speed
    45/45/20/45 (Typ.)(CR≥10)6 o'clock3/8 (Typ.)(Tr/Td) (ms)
    Dispaly Color :Color TemperatureColor AmountWhite color Chromaticity
    6485K262K (6-bit)X:0.313; Y:0.329
    1931 Color Gamlt :NTSC RatiosRGB CoverageAdobe RGB Coverage
    61%85%64%
    DCI-P3 CoverageRec.2020 CoverageRemarks
    64%46%sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Luminance Variation :1.25/1.54 (Max.)(5/13 points)

    Chimei Innolux N156BGE-L11 Interface Features

    Signal Electrical :Current InputVoltage InputConsumption
    340±30mA3.3V (Typ.)1.221 (Max.)
    Interface Features :PositionTypeInterface
    ConnectorLVDS (1 ch, 6-bit)
    Signal Interface :BrandModelAmountPin PitchPinsPin Assignment
    I-PEX20455-040E-121 pcs0.5 mm40 pinsLVDS-40P1C6B-060J

    Chimei Innolux N156BGE-L11 Backlight Features

    Backlight Features:TypePositionShapeAmountLife(Hours)Replacement
    WLEDEdge light type--15K(Min.)-
    WLED Electrical :Current InputVoltage InputConsumption
    120±6mA22.4/25.6/27.2V (Min./Typ./Max.)
    Interface Features :PositionTypeWLED Driver
    -Included in panel signal interfaceWith LED Driver
    Driver Electrical :Current InputVoltage InputConsumption
    253/301/357mA (Min./Typ./Max.)6.0/12.0/21.0V (Min./Typ./Max.)3.75W (Max.)

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
