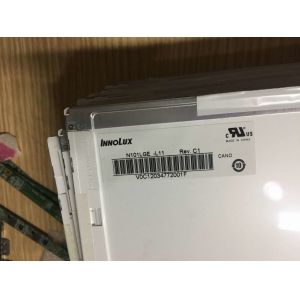

N101LGE-L11 Chimei Innolux 10.1" 1024(RGB)×600 200 cd/m² INDUSTRIAL LCD DISPLAY

    Buy cheap N101LGE-L11 Chimei Innolux 10.1

    Buy cheap N101LGE-L11 Chimei Innolux 10.1
    • Buy cheap N101LGE-L11 Chimei Innolux 10.1
    • Buy cheap N101LGE-L11 Chimei Innolux 10.1
    • Buy cheap N101LGE-L11 Chimei Innolux 10.1
    • Buy cheap N101LGE-L11 Chimei Innolux 10.1

    N101LGE-L11 Chimei Innolux 10.1" 1024(RGB)×600 200 cd/m² INDUSTRIAL LCD DISPLAY

    Ask Lasest Price
    Brand Name : INNOLUX
    Model Number : N101LGE-L11
    Certification : ISO9001
    Payment Terms : TT/PAYPAL/ESCROW/WESTERN UNION
    Supply Ability : 1000PCS
    Delivery Time : 1-2 DAYS
    • Product Details
    • Company Profile

    N101LGE-L11 Chimei Innolux 10.1" 1024(RGB)×600 200 cd/m² INDUSTRIAL LCD DISPLAY

    Chimei Innolux N101LGE-L11 Application Details

    Basic Detail :ManufacturerModel NameN101LGE-L11 9 Compatible
    Panel Typea-Si TFT-LCD , LCMAnother NameCMO1032
    Panel Size10.1 inchDesigned For
    Maximum Ratings :OP Temperature0 ~ 50 °CST Temperature-20 ~ 60 °C

    Chimei Innolux N101LGE-L11 Optical Details

    Basic Information :Luminance200 cd/m² (Typ.)Contrast Ratio500 : 1 (Typ.) (Transmissive)
    Good View at6 o'clockResponse Speed3/7 (Typ.)(Tr/Td) (ms)
    Viewing Angle45/45/20/45 (Typ.)(CR≥10)Operating ModeTN, Normally White, Transmissive
    Color Performance :ChromaticityWx:0.313; Wy:0.329Support Color262K (6-bit)
    Color Temperature6485KWhite Uniformity1.25/1.40 (Max.)(5/13 points)
    1931 Color Gamlt :NTSC Ratio45%sRGB63% coverage
    Adobe RGB47% coverageDCI-P347% coverage
    Rec.202034% coverageRemarkssRGB (Rec.709, BT.709), Rec.2020 (BT.2020)

    Chimei Innolux N101LGE-L11 Mechanical Details

    Pixel Features :Number of Pixel1024(RGB)×600 [WSVGA]ArrangementRGB Vertical Stripe
    Dot Pitch(W×H)0.0725×0.2088 mmPixel Pitch(W×H)0.2175×0.2088 mm [117PPI]
    Physical Size :Active Viewing222.72(W)×125.28(H) mmOverall Dim.235(W)×143(H) mm
    Bezel Opening226.34(W)×128.1(H) mmOverall Depth4.9/5.2 (Typ./Max.) mm
    Outline Features :Form ShapeFlat RectangleOrientationLandscape type
    Aspect Ratio(W:H)16:9Shape StyleWedge (PCBA Bent, T≥5.2mm)
    Fixation :Side mounting holes (4-M2) on left, right bezel
    Other Detail :Mass180/190g (Typ./Max.)SurfaceAntiglare, Hard coating (3H)

    Chimei Innolux N101LGE-L11 Interface Details

    Signal Electrical :Input Current160/180mA (Typ./Max.)Input Voltage3.3V (Typ.)
    Consumption0.561W (Max.)Signal InterfaceLVDS (1 ch, 6-bit)
    Interface Features :PositionPhysical TypeConnector
    Signal Interface :BrandModelAmountPin PitchPin AmountPin Assignment
    I-PEX20455-040E-121 pcs0.5 mm40 pinsLVDS-40P1C6B-060B

    Chimei Innolux N101LGE-L11 Lightting Details

    Lamp Features:Lamp Shape-Lamp TypeWLEDPositionEdge light type
    Exchange-Amount-Life15K(Min.) (Hours)
    Lamp Electrical :Input Current40±2mAInput Voltage27.9±2.7
    Consumption0.96/1.12/1.29W (Min./Typ./Max.)
    Interface Features :Position-Physical TypeIncluded in panel signal interface
    Backlight Driver :With LED Driver
    Driver Electrical :Input Current113±21mAInput Voltage5.0/12.0/21.0V (Min./Typ./Max.)
    Consumption1.608 (Max.)

    Chimei Innolux N101LGE-L11 Packing Details

    Package Box :AmountSize (L×W×H)Weight
    40 pcs / box422×286×320 mm9.0 Kgs

    FAQ:
    Q1: What's the quality of your LCD Panel?
    A: Various quality such as 100% New & Original OEM New, A Grade LCD, A- LCD Panel etc.
    Q2: What is your return and refund policy?
    A: We provide you excellent after-sales services, and promise you 6-month warranty after shipping to assure you a stable performance.
    Q3: How long is the lead time?
    A: The lead time is about 1-3 working days after receipt of payment.
    Q4: How can I get the quotation?
    A: Please enquire via Skype,Email,Whatsapp or telephone. You will get reply within 24 hours.
