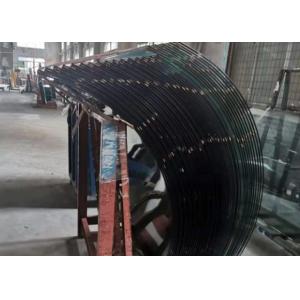

Hot Bent Tempered Clear Glass for Round Windows Strengthed Safety
Glass
About Tempered Glass Panels:
Tempered glass is stronger than standard glass and does not shatter
into large shards when broken. This is important, because it can
greatly minimize potential danger in the case of a break.

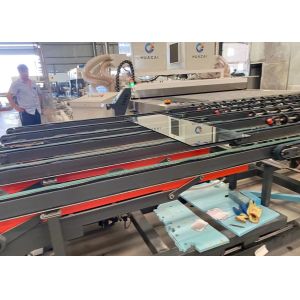

Manufactured through a process of extreme heating and rapid
cooling, tempered glass is much harder than normal glass.
There are two steps for the tempering process:
(1) Heating: The glass travels through a high-heat tempering oven
and is heated to approximately 1200 °F.
(2) Quenching: After it has been sufficiently heated, the glass is
then quenched—or cooled down. The quenching procedure is very fast,
and consists of several nozzles blasting the glass with cool air
for several seconds. This is where tempered glass gets its
strength—this dramatic shock causes the surface and edges to become
compressed, and the inner layer to be in tension, thus
strengthening the material by three to five times.
Specification of Tempered Glass Panels:
| Product Name | Hot Bent Tempered Clear Glass for Round Windows Strengthed Safety
Glass |
| Raw Material | Clear Glass, Ultra Clear (Low Iron) Glass, Tinted Glass |
| Glass Process | Heat treatment or Chemical treatment |
| Glass Color | Clear, Blue, Green, Bronze, Grey and etc |
| Thickness | 2.1 mm - 19 mm |
| Max dimension | 3660 x 2440 mm |
| Min dimension | 20 x 20 mm |
| Glass Shape | Flat or Curved / Bent |
| Fragment (Area 5*5cm) | T<=3mm, Fragment>=30 PCS; 4mm<=T<=12mm, Fragment>=40
PCS |
| Shock resistance | 5~7 times of annealed glass |
| Heat resistance | Thermal shock at about 300℃ |
| Withstand pressure | 3~5 times of annealed glass |
| Holes or cutout | Drawing or sketch is needed |
| Printing | Available per request |
Applications of Tempered Glass Panels:

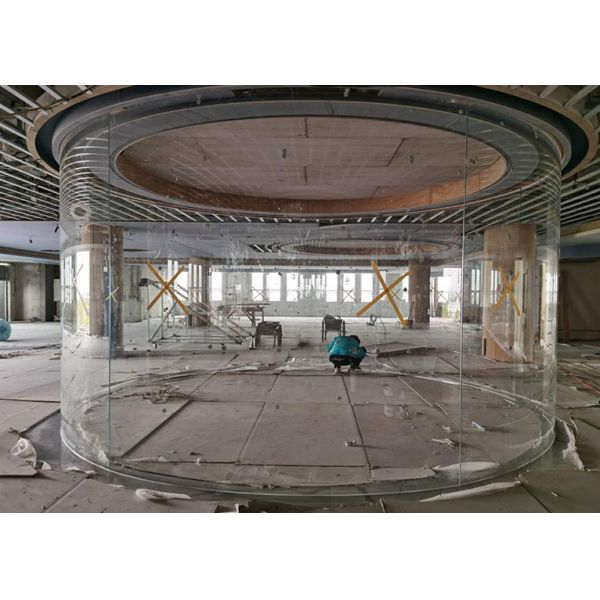

- There is a wide scope for the use of tempered glass in the building
industry. It can be used to raise the elemental beauty of exteriors
and interiors by using it on facades, showroom shelves, dividers,
shower cabins, doors and etc.
- High resistance to thermal stress and small missile impact makes
tempered glass an ideal choice for sloped glazing.
- The manufacturing industry uses tempered glass in ovens,
refrigerators, fireplace screens, and shelves.
- In the motor vehicle industry, tempered glass is commonly used
inside and rear windows.
Advantage of Tempered Glass Panels:
- Tempered glass can be clear, frosted, engraved, stained, and
patterned. It’s available in an array of patterns and designs to
suit your needs.
- Tempered glass is much more stronger than ordinary glass. It can
stand up to strong winds, direct impact from blows and bumps, and
minor explosions.
- Tempered glass has property of high temperature resistant, which
makes tempered glass ideal for use in kitchen appliances and in
areas like the bathroom, where it will likely be in contact with
the heat on a regular basis.
- Tempering process makes tempered glass super tough, it doesn’t
affect the clarity of the glass. Tempered glass is crystal clear
and transparent, which makes it useful in windows, display cases,
and glass doors.
- Tempered glass can be used practically anywhere glass is needed. It
makes for an attractive and sturdy frameless shower door, a fully
transparent screen protector, and a seamless stovetop base.
- The manufacturing process that makes tempered glass thermally tough
also makes it scratch-resistant. This makes tempered glass an ideal
material for glass doors, kitchen appliances, mobile screen
protectors, and windows.
FAQ:
Q1: How can we get detailed price?
-- Please provide us product thickness, size & qty, which will help
us calculate costs for you.
-- CIF price is also available if destination port is provided.
Q2: How about sample and freight cost?
-- In general, we provide free samples, customers take freight
cost.
Q3: How long is the production lead time for mass order?
-- It will take about 1~3 weeks, depends on product complexity &
order quantity.
Q4: How do you control product quality?
-- Clearly understand customers’ product requirements;
-- To transfer customers requirements to internal product
documents;
-- Complete quality assurance system from IQC to OQC. Outgoing
inspection record is available for each order.
Q5: What about the payment?
-- T/T, L/C, Ali Trade Assurance, Western Union.
Q6: What about the after-sales service?
-- Normally we response within 4 hours, by email or WhatsApp or
Wechat etc;
