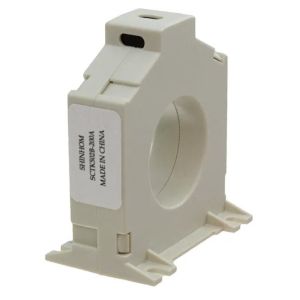

    IEC60076 Ac Current Transformer 100mA Magnetic Modulation

    Ask Lasest Price
    Brand Name : Shinhom
    Model Number : SCT Series
    Certification : CE IEC RoHS
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 10000/MONTH
    Delivery Time : 4~8 Weeks
    • Product Details
    • Company Profile

    IEC60076 Ac Current Transformer 100mA Magnetic Modulation

    Current Sense Transformer , Current Transformer , Current Sensor


    The Current Transformer is a new current sensor developed from the application of magnetic modulation principle, excellent stability in tiny currents measurement, with a highly galvanic isolation between primary and secondary circuit. Widely used in leakage monitoring systems, signaling systems and the current difference measurement etc.


    Specifications:


    1. DC Leakage Current Sensor

    2. magnetic modulation.

    3. Ipn 10mA to 100mA

    4. Low loss

    5. Good linearity 0.5%


    Parameters(25°C) ModelSCD3 -10mASCD3 -20mASCD3 -50MASCD3 -100mA
    Nominal Rms Current (Ipn)±10mA DC±20mA DC±50mA DC±100mA DC
    Measuring Range (Ip)2* Ipn
    Load resistance Rmax≥10kΩ
    Output Voltage±5V
    Working voltage±12V~±15V(±5%)
    Accuracy @ Ta=25°C±1% FS
    Linearity @ Ta=25°C±0.5% FS
    Input Offset VoltageSCD3<±100mV
    Thermal drift of Vo< ±1mV/°C< ±2mV/°C< ±2mV/°C
    Resolution10uA
    immunity (to external interference)< ± 5mV When H=50A DC/m
    Weight:SCD3 350g
    Withstand voltage3kVrms/50Hz/min
    Current consumption<13mA
    Operating temperature-10~+75 °C
    Storage temperature-25~+80 °C

    Notes: Product specifications can be customized
