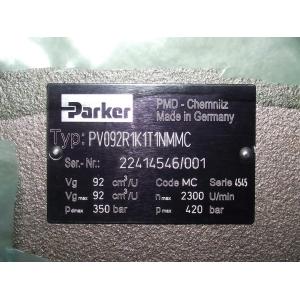

Parker Mini Excavator Axial Piston Pump PV092R1K1T1NMMC
PV023R1K8T1VFHS
Features:
lInstallation form conforms to standard VDMA-24560
lStandard mounting: IS0 3019/2 4-hole flange (metric)
l Optional installation: IS0 3019/1 4-hole flange (SAE)
l Large variable control piston with strong reset spring, quick
response
l Because the compensation system has the function of pressure
release, the pressure peak value of zero flow variable is reduced
l At low T pressure, it still has stable compensation regulation
function: the minimum compensation pressure is 12-15bar
l 9. Plunger design and new technology of pre-compression volume
reduce flow pulsation to unprecedented minimum level
l Robust and FEM optimized pump body structure reduces noise level
intact variable control types
l 100% nominal torque through shaft transmission structure
l The same specifiion, the same type and almost all pumps with the
same metric or SAE mounting flange can be assembled

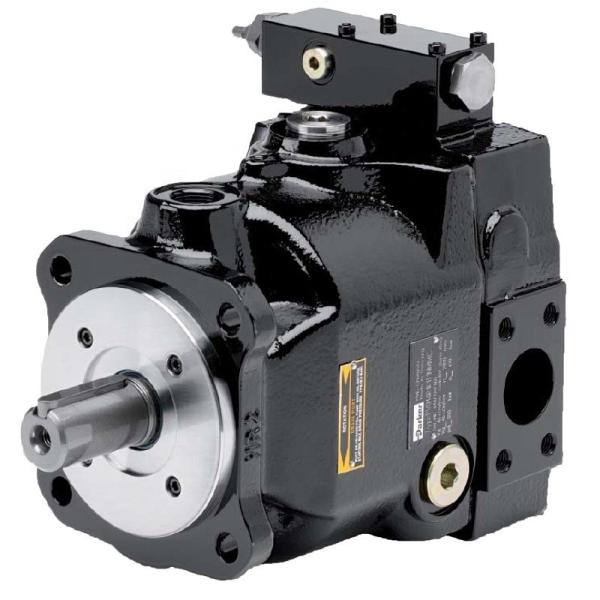

This type of hydraulic pump is a swashplate type axial plunger type
hydraulic pump driven by belt pass shaft for open loop, which can
be used in combination of single pump and multiple pumps.
Parker PV series Technical Features:
- Low noise level
- Fast response
- Service-friendly
- High self-priming speed
- Compact design
- Thru drive for 100% nominal torque
Control mode:
With standard pressure regulator
With power regulator
Working pressure:
Rated pressure 35MPa
Peak pressure 42MPa
1. Our Factory have advanced technology and 100% testing before
delivery.
2. Quick delivery and competitive price.
3. The larger quantity you order, the better price we can supply.
4. We have a professional team to offer professional service for
you.
5. We can offer New and Used, OEM, Good quality, Aftermarket parts
to you.
6. All parts can check with part number, all parts can order by
part number.
9. Safe packing to protect the goods, such as wooden box, Iron
sheet.
10.MOQ: 1PC is acceptable.
