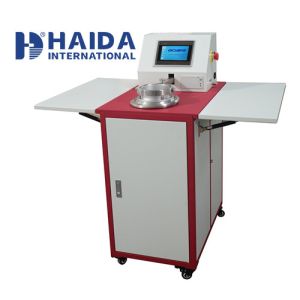

    ASTM D737 Air Permeability Tester For Textiles Fabric Performance Test Machine 4000 Pa

    ASTM D737 Air Permeability Tester Fabric Performance Test Machine 4,000 Pa


    Usage


    Air Permeability Tester is to test the permeability of various textile fabrics, including industrial fabrics, nonwovens and other textile products and other breathable materials.


    Test standard


    ASTM D737 Standard Test Method for Air Permeability of Textile Fabrics

    ISO 9237 Textiles - Determination of the Permeability of Fabrics to Air

    BS 5636, DIN 53887, AFNOR G07-111, EDANA 140.1, ISO 7231, ISO 9073-15, JIS L1096-A

    TAPPI T251, WSP 070.1.R3, EDANA 140.2-99


    Technical parameters


    Technical IndexHD-W810
    Measuring range0.1~12,000 mm/s at 20 cm² test area.
    Units of measure

    mm/s, ft³/ft²/min, cm³/cm²/s, l/m²/s, l/dm²/min, m³/m²/min, m³/m²/h, dm³/s

    Pa (pressure drop)

    Measuring accuracy≤ ± 2 %
    Test pressure1-4,000 Pa(Nozzle)
    Test areas20cm²& 38.5cm²(Standard accessories ),5cm²,50cm²,100 cm²(Optional)
    Sample thickness≤ 12mm
    Package Dimensions780 x 620 x 1350 mm
    Power supply220V, 50Hz or 110V, 60Hz
    Net Weight75kg



    air permeability tester air permeability tester
