Double Side Plastic Oil Bucket Sticker Labelling Machine 6000nph

Automatic Double Side Plastic Oil Bucket Labeling Machine

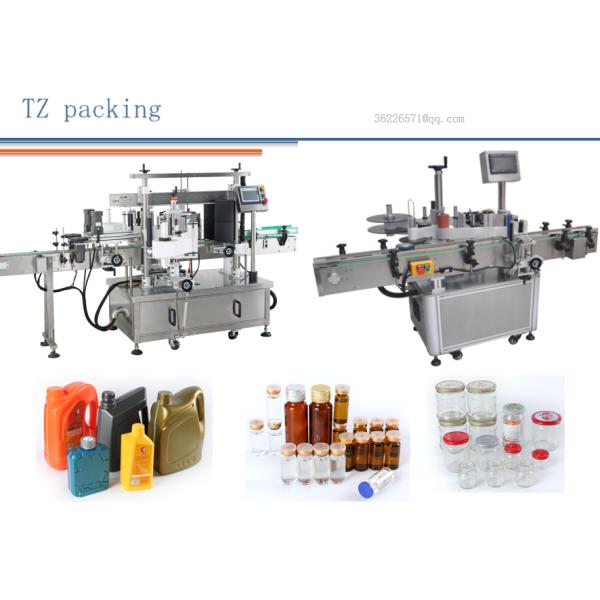

Automatic double side labeling machine

Equipment Overview:

Automatic self-adhesive double-sided labeling machine(also would choose one side labeling) is suitable for single-sided or double-sided labeling of flat bottles, special-shaped bottles and square bottles in daily chemical, home chemical, medicine and food.

Such as lubricant bottles, laundry detergent bottles, shoe polish bottles, fish bottles, beverage bottles, cosmetic bottles etc., optional ribbon code printer or inkjet printer, labeling at the same time to achieve print production batch number, production date and other information, to achieve Labeling and ink jet printer Integration, reducing the packaging process and improving production efficiency.

Technical Parameters:

1, Label specification: length 15~250mm; width 20~150mm

2, Product Specifications: Length 20~300mm; Width 30~90mm; H60~350mm

3, The outside diameter of the label: Φ280mm;

4, Roll diameter: Φ76mm

5, Labeling speed: 10~80/min

6, Labeling accuracy: ±1mm

7, Air pressure: 0.6~0.8Mpa

8,Power: 850w (step), 1150w (servo)

9,Voltage: 220V 50Hz

Overview

It is suitable for the high-precision circular, front and back (double-label) and fixed-point positioning and labeling of circular objects in medicine, food, daily chemical and other industries;

It can also meet the labeling requirements of tapered products, advanced man-machine interface system, the operation is simple and intuitive, full-featured, with rich on-line help function, unique three-point positioning of the bottle body, avoiding irregular labeling at the bottom of the label when labeling with a linear labeler, and label misalignment caused by errors in the bottle body being not vertical.

Allows labeling to be more accurate, beautiful, smooth, automatic photoelectric detection, with no object no label, automatic correction, alarm, automatic detection function, to prevent leakage and waste, the machine structure is simple, compact, easy to operate and maintain.

Parameter

other Hot sales product: automatic labeling machine , Aluminum Foil Sealing Machine, Explosion Proof Filling Machine, bottle labeling machine, Rotary Capping Machine, Snap Cap Capping Machine, Press Capping Machine

The filling production line integrated production expert around you

Tengzhuo was founded in 2011 and has more than ten years of experience in the packaging equipment industry. Design the filling production line according to your requirements and workshop layout.

Our products include: filling production lines, bottle washing machines, filling machines, capping machines, labeling machines, sleeve labeling machines, cartoon palletizing machines, etc.

The main electrical components are all from international brands, such as PLC and touch screen from Siemens, servo from Panasonic or Schneider, cylinder from Airtac, and power switch from Schneider. Each piece of stainless steel is made of thick 304 material and will never rust.

The products have passed CE certification.

Our company has 16 senior engineers and designers, 5 CNC lathes and milling machines, and more than 10 other professional production machines and equipment. We have truly integrated R&D, design, processing, assembly, installation and debugging to meet all your pre-sales, installation, production and after-sales problems.
