Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight



VC9807A+ True RMS Digital Multimeter Manual Range Voltage Current Resistance Capacitance multimetro Electrical tester



Main Features



1. Multifunction:The Digital Multimeter can measure AC/DC voltage,AC/DC current,resistance,capacitance,frequency,hFE,diode,continuity and conductance.

2. Portable design:There is a back bracket and hanging hole for supporting multimeter,convenient to operate.

3. Wide range of applications:It's a perfect tool for the laboratory,factory and home.

4. Clear to read:With large LCD backlight display and data hold function,convenient to read data.

5. More advantages:Low battery indication,True RMS,Auto power off,over range indication and overload protection.



Description:

1. The VC9807A+ is a handheld digital multimeter,high precision and portability,a perfect tool for the laboratory,factory and home.
2. It can measure AC/DC voltage,AC/DC current,resistance,capacitance,inductance,
temperature,frequency,hFE,diode and continuity.
3. Moreover,more advantages such as backlight,data hold,low battery indication,true RMS,auto power off,over range indication and overload protection.



Specifications:



Brand Name:VICTPR
Model:VC9807A+
Color:Black&Orange
Display Counts:19999
Diode Test:Yes
hFE test:Yes
Continuity test:Yes
Conductance test:Yes
Backlight display:Yes
Data hold:Yes
True RMS:Yes
Auto power off:Yes
Low Battery indication:Yes
Over range indication:Yes
Overload protection:Yes



Technical Data VC9807A+



Basic Function Range Accuracy
DC Voltage 200mV/2V/20V/200V ±(0.1%+5)
1000V ±(0.2%+5)
AC Voltage 200mV ±(1.0%+25)
2V/20V/200V ±(0.8%+25)
750V ±(1.2%+50)
DC Current 200uA/2000uA/20mA ±(0.5%+4)
200mA ±(0.8%+6)
20A ±(2.0%+15)
AC Current 20mA ±(1.5%+15)
200mA ±(1.5%+15)
20A ±(2.5%+35)
Resistance 200Ω ±(0.4%+10)
  2kΩ/20kΩ/200kΩ ±(0.4%+5)
  2MΩ ±(1.2%+25)
  20MΩ/200MΩ ±(5.0%+45)
Conductance (0.1~100)nS ±(1.0%+30)
Capacitance 20nF/200nF/2uF/20uF/200uF/2mF ±(4.0%+50)
Frequency 200Hz/2kHz/20kHz/200kHz/2MHz ±(0.1%+3)



Special Function
Diode
Transistor test
Continuity buzzer
Low battery indication
Data Hold
Auto power off
Backlight
Function protection
Shockproof protection
True RMS
Input impedance 10МΩ
Sampling rate 3 times/s
AC Frequency response 40~1000Hz
Operation way Manual range
Max. Display 19999
LCD size 70×50mm
Battery

1.5V AAA LR03 Battery





" }
Sign In | Join Free | My burrillandco.com
Home > Multimeters >

Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight

    Buy cheap Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight from wholesalers

    Buy cheap Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight from wholesalers
    • Buy cheap Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight from wholesalers
    • Buy cheap Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight from wholesalers
    • Buy cheap Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight from wholesalers
    • Buy cheap Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight from wholesalers
    • Buy cheap Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight from wholesalers

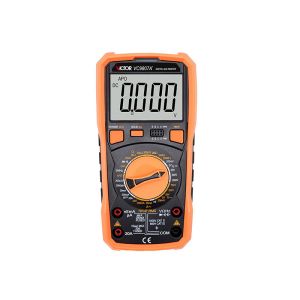

    Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight

    Ask Lasest Price
    Brand Name : VICTOR
    Model Number : VC9807A+
    Certification : CE
    Price : 100pcs: USD17.2/pc; 100pcs to 500pcs: USD16.4/pc; 500pcs to 1000pcs: USD15.6/pc; Above 3000pcs: USD14.8/pc
    Payment Terms : T/T, Western Union, L/C, Paypal
    Supply Ability : 10000pcs available
    Delivery Time : 5 to 30 days
    • Product Details
    • Company Profile

    Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight


    Voltage Current Manual Ranging Digital Multimeter LCD Display With Backlight


    VC9807A+ True RMS Digital Multimeter Manual Range Voltage Current Resistance Capacitance multimetro Electrical tester


    Main Features


    1. Multifunction:The Digital Multimeter can measure AC/DC voltage,AC/DC current,resistance,capacitance,frequency,hFE,diode,continuity and conductance.

    2. Portable design:There is a back bracket and hanging hole for supporting multimeter,convenient to operate.

    3. Wide range of applications:It's a perfect tool for the laboratory,factory and home.

    4. Clear to read:With large LCD backlight display and data hold function,convenient to read data.

    5. More advantages:Low battery indication,True RMS,Auto power off,over range indication and overload protection.


    Description:

    1. The VC9807A+ is a handheld digital multimeter,high precision and portability,a perfect tool for the laboratory,factory and home.
    2. It can measure AC/DC voltage,AC/DC current,resistance,capacitance,inductance,
    temperature,frequency,hFE,diode and continuity.
    3. Moreover,more advantages such as backlight,data hold,low battery indication,true RMS,auto power off,over range indication and overload protection.


    Specifications:


    Brand Name:VICTPR
    Model:VC9807A+
    Color:Black&Orange
    Display Counts:19999
    Diode Test:Yes
    hFE test:Yes
    Continuity test:Yes
    Conductance test:Yes
    Backlight display:Yes
    Data hold:Yes
    True RMS:Yes
    Auto power off:Yes
    Low Battery indication:Yes
    Over range indication:Yes
    Overload protection:Yes


    Technical Data VC9807A+


    Basic FunctionRangeAccuracy
    DC Voltage200mV/2V/20V/200V±(0.1%+5)
    1000V±(0.2%+5)
    AC Voltage200mV±(1.0%+25)
    2V/20V/200V±(0.8%+25)
    750V±(1.2%+50)
    DC Current200uA/2000uA/20mA±(0.5%+4)
    200mA±(0.8%+6)
    20A±(2.0%+15)
    AC Current20mA±(1.5%+15)
    200mA±(1.5%+15)
    20A±(2.5%+35)
    Resistance200Ω±(0.4%+10)
    2kΩ/20kΩ/200kΩ±(0.4%+5)
    2MΩ±(1.2%+25)
    20MΩ/200MΩ±(5.0%+45)
    Conductance(0.1~100)nS±(1.0%+30)
    Capacitance20nF/200nF/2uF/20uF/200uF/2mF±(4.0%+50)
    Frequency200Hz/2kHz/20kHz/200kHz/2MHz±(0.1%+3)

    Special Function
    Diode
    Transistor test
    Continuity buzzer
    Low battery indication
    Data Hold
    Auto power off
    Backlight
    Function protection
    Shockproof protection
    True RMS
    Input impedance10МΩ
    Sampling rate3 times/s
    AC Frequency response40~1000Hz
    Operation wayManual range
    Max. Display19999
    LCD size70×50mm
    Battery

    1.5V AAA LR03 Battery
