    Pin Barrel Cold Feed Rubber Extruder

    Ask Lasest Price
    Brand Name : HHS
    Model Number : XJ65-200
    Certification : CE; ISO
    Price : USD:20000-80000 /SET
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 50 sets/month
    Delivery Time : 20 working days
    • Product Details
    • Company Profile

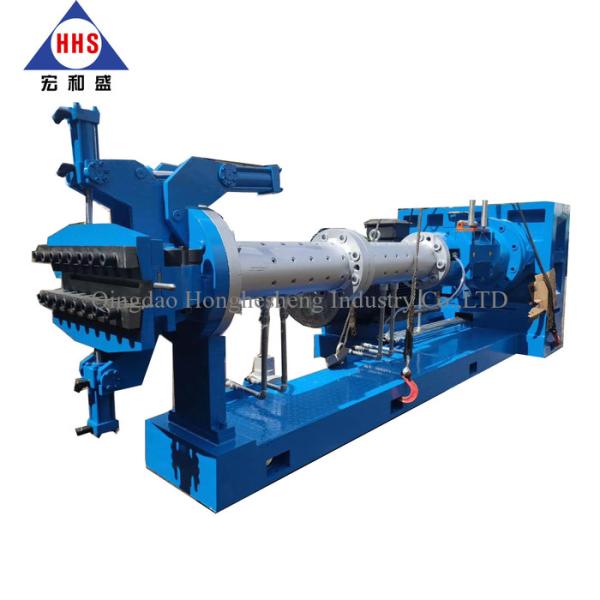

    Pin Barrel Cold Feed Rubber Extruder

    Rubber extruder machine

    PIN-BARREL COLD FEED RUBBER EXTRUDER XJD-90

    Specification
    XJD-60
    XJD-90
    XJD-120
    XJD-150
    XJD-200
    XJD-250
    Screw diameter(mm)
    60
    90
    120
    150
    200
    250
    Length-diameter ratio L/D
    8 - 12
    12 - 16
    12 - 16
    12 - 18
    12 - 18
    12 - 18
    Screw RPM (r/min)
    ~80
    ~60(55)
    ~50
    ~45
    ~33
    ~26
    Production capacity(kg/h)
    80 - 150
    250 - 350
    600 - 800
    1000- 1500
    1600-2500
    2800-3500
    Number of line of pins
    -7
    -10
    -10
    -12
    -12
    -12
    Cooling water pressure(MPa)
    ≥0.2
    ≥0.2
    ≥0.2
    ≥0.2
    ≥0.2
    ≥0.2
    Power supply
    380V/50Hz
    380V/50Hz
    380V/50Hz
    380V/50Hz
    380V/50Hz
    380V/50Hz
    Main motor power(kw)
    18.5 - 22
    45 - 75
    75 - 110
    160 - 250
    220 - 355
    355 - 450
    Total power consumption(kw)
    Main motor power+26
    Main motor power+46
    Main motor power+46
    Main motor power+66
    Main motor power+82
    Main motor power+82
    Overall dimensions (mm)
    L:1800
    3360
    3750
    5200
    7150
    7150-8500
    W:1310
    1350
    1600
