    J23 Mechanical Hydraulic Punch Die 3T Metal Punch Die

    Ask Lasest Price
    Brand Name : WORLD
    Model Number : SZ-200
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    J23 Mechanical Hydraulic Punch Die 3T Metal Punch Die

    Hydraulic Punch Die Metal Punch Die Stamping Press Mold/Molds Injection Mold Maker


    Product nameAutomotive / metal stamping parts progressive die from mold vendor
    Material of progressive dieD2, SKH-9, SKD11, A3,SKD61
    Applicationfor metal parts stamping
    progressive die life300,000--700,000shots
    SizeCustom progressive die
    MOQ1set
    Surface treatmentPainting
    ColorCustomized Colors
    CertificationISO9001/TS16949/QS/ISO14001

    Y28C-300 hydraulic bulging machine profile drawing and the main performance and features, technical parameters

    1, Main performance

    1) With a rapid mold closing and parting, slow mode-locking
    2) Clamping pressure adjustable
    3) Independent water supply
    4)There are many times bulging for pressure

    2, Features
    1) Frame structure, workbench can run accurately
    2) With high pressure water overflow protection, safe operation
    3) The oil supply system is placed on top of the machine and is separated from the water supply system to ensure that the hydraulic oil does not enter the water
    4) Automatic exhaust device, make water expansion mould pressure evenly

    3, Y28C - 400 Oil Press Main Technical Parameters

    NO.ITEMUNITY28-200K
    1Nominal PressureKN2000
    2Main-Cylinder Nominal PressureKN1500
    3Main-Cylinder Hydraulic System PressureMpa20
    4Main-Cylinder Max. Strokemm560
    5Main-Cylinder Up & Down SpeedFast Downmm/s400
    Working Speedmm/s57/36
    Fast Upmm/s330
    6Max. Closed Heightmm960
    7Working Table Size (LR x FB)mm700*990
    8Min. Closed Heightmm400
    9Side-Cylinder PressureKN500
    10Side-Cylinder Max. Strokemm280
    11Motor PowerKW47

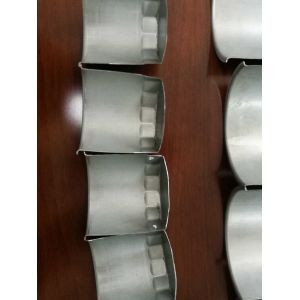

    Aluminum straight barrel inner embossing electric cooker stamping production process

    • open the film → ② embossed → ③stretch→ ④ →shape the mouth →⑤ edge cutting
    Features
    1.Steel welded body, tempering treatment, high rigidity, accuracy and stability;
    2.The crankshaft undergoes grinding treatment after high frequency quenching;
    3.Pneumatic dual balance cylinder, which balances the slide block and punch weight to reduce noise and impact;
    4. Combined pneumatic clutch and brake are made of friction material, which means long service life;
    5. PLC electric control system is safe and reliable deep drawing Hydraulic press;
    6. Machine is with both hands button and foot switch to achieve continuous, single and inching practices.
