cold rolling mill Double Cut Shear Knife for cut the front and rear
side of the coil
Senda cold rolling mill Double Cut Shear Knife used to used to cut
hot rolled coils and cold rolled coils together with Side Trimmer
Knife. (plating, annealing and rolling). Each knife are produced
highly according to your requirements. With our Advanced equipments
for machining, heat-treatment, we provide our Double Cut Shear Knife with No deformation, Smooth cut-off edge and No burr performance.
| Brand | Senda |
| Country of Origin | China |
| Material | D2, K110, SKD11,6CrW2Si etc |
| Size: | Max can reach 6000mm for Length |
| Size: | Customized |
| Hardness | HRC 58_62 |
| Application | Non-ferrous processing factory,cold rolling mill factory , hot
strip mill factory |
Application of the Double Cut Shear Knife:
1. For shearing middle or thick thickness metal plate, we recommend
H13K, 6CrW2Si, LD, SKD11 etc material.
2. Cut plates up to 3.2mm thickness for cold rolling coil, and
12.7mm thick for hot rolling coils.
Popular size:

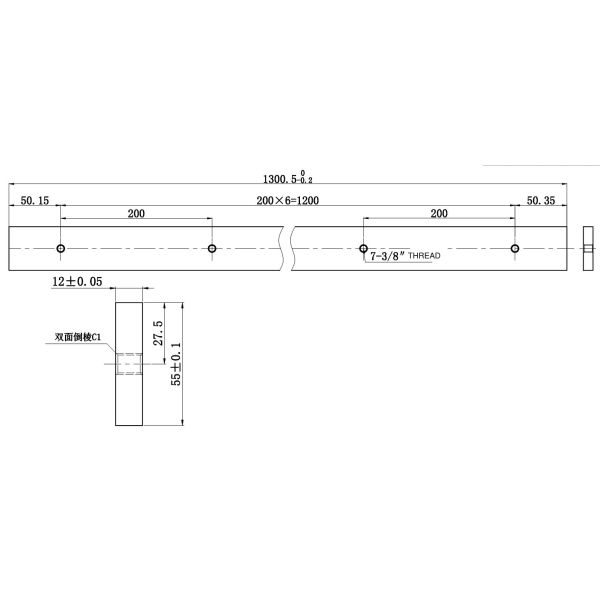

| double side shears TOP | 2080*170*100, 2200*170*100 3500*170*100, 2800*205*100 1300*55*12 |
| double side shears BOTTOM | 2075*160*70, 2200*150*100 3500*150*100, 2800*150*100 1270*55*12 |
TOP shear blade
Bottom shear blade
SENDA manufacture every type of knife used on every kind of mill
processing and finishing lines, including:
Flat bar shear blade
Angle shear blade
Angle notcher blade
One to four cutting edges per blade
Scissor style cutting blade
Guillotine style blade
Custom sizes and styles available
Senda starting from 1998, focus on the quality of products and
provide better service. Now we have over 100 workers, CNC lathes,
High precision internal and external circular grinding machines,
heat-treatment furnaces grinding machines and inspection machines.
