Coolmay 0.8A PLC Power Supply DC24V Natural Heat Dissipation
PLC Power Supply Coolmay CX6024 DC24V DC12V DC5V 1A PSU
Model: CX6024
DC24V DC12V DC5V 1A
COOLMAY CM6024 / CX2024 / CX6024-12-5 din rail type industrial
power supply and CM15024 industrial power supply Al l adopt
imported power supply dedicated driver chip, high precision high
temperature resistant electronic components and international
advanced PWM pulse width modulation technology, with short circuit,
overload, over voltage, overheating and other protection functions.
| Model | CX6024-12-5 | CX2024 | CM6024 | CM15024 |
| Dimension | 85*90*36mm | 65*90*36mm | 90*60*32mm | 159*97*38mm |
| Connection mode | 7.62 barrier terminal | 5P-7.62 barrier terminal | 7P-9.5 barrier terminal |
| Installation | Standard guide rail's installation, can be installed on NS357.5or
NS35 guide slot | screw fixation, vertically or parallel installation |
| Input voltage | 88～264VAC or 125~373VDC (Withstand 300 VAC surge input 5S, no
damage) |
| Input frequency | 47～63HZ |
| Output voltage | DC24V/ DC12V/ DC5V | DC24V |
| Output current | 1A | 0.8A | 2.5A | 6.5A |
| Impulse current | 30A/ 230VAC | 60A/ 230VAC |
| Output accuracy | ±1% |
| Output efficiency | 86% | 85% | 86% | 89% |
| No-load consumption | ＜0.5W |
| Life time | 100000 hours at room temperature 25 ° C |
| Overload protection | Rated output 110%~180%, hiccup protection mode, automatic recovery
after load abnormal condition remova |
| Overvoltage protection | 27.6～32.4V |
| Short circuit protection | Automatic protection when the output is short-circuited (LED off),
automatically restored after the short-circuit is released |
| Insulation withstand voltage | I/P-O/P: 3KVA, I/P-FG: 1.5KVA, O/P-FG: 0.5KVA,1 minute |
| Working environment | working environment-20～+70° C / working humidity20～90%RH |
| Storage environment | No condensation, storage temperature -40 ~ +85 ° C / storage
humidity 10 ~ 95% RH |
Features:
1. Advanced PWM pulse width modulation technology.
2. Imported switching power s upply dedicated driver chip.
3. Soft start current, effectively reducing transient voltage
surges.
4. High temperature electrolytic capacitors are used to ensure
system reliability.
5. 120% full load aging test with strong output.
6. Built-in EMI and filter. Ripple and noise are minimal.
7. Short circuit protection, overload protection, over voltage
protection and other functions.
8. Natural heat dissipation, stable performance and high
reliability.
9. Average trouble-free working time up to 100,000 hours.
Pictures:

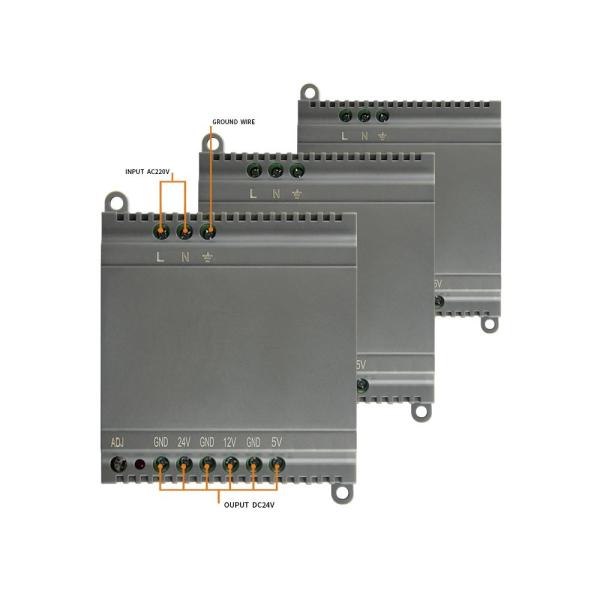

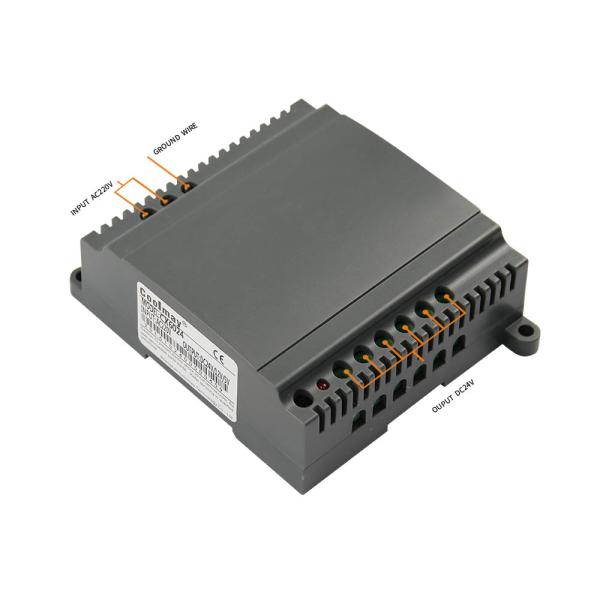

Plastic housing, rail mounting; can simultaneously output voltage
DC24V, DC12V and DC5V to meet the power supply of different
equipment supply voltage; output current can reach 2A when only one
type of voltage device is supplied; When powered for DC24V, DC12V
and DC5V devices at the same time, the output current can reach 1A.
Wiring (No 5) :
