15MHz DDS Signal Function Generator Arbitrary Waveform Frequency
Mete

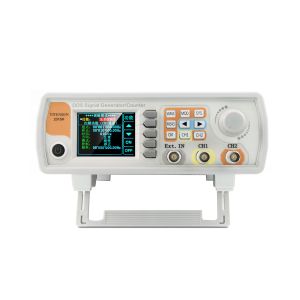

VICTOR 2015H 15MHz DDS Signal Generator Counter Dual-channel
universal Function frequency generator Arbitrary Waveform Frequency
Meter
Description:
Series VC2015H,2040H,2060H, 2 channel Function Signal generator
combines multiple functions in one, such as Function Signal
Generator, Arbitrary Waveform Generator, Pulse Generator, Sweep,
Counter and Frequency Meter, etc. The instrument adopts the Direct
Digital Synthesizer(DDS) technology and provides stable, precise,
pure and low distortion signals. It's a great testing or measuring
instrument for electronics engineers, electronic laboratory,
teaching and researching.
Feature:
Adopt 320*240 2.4 inch TFT color LCD display, simultaneously
display parameters of CH1 and CH2.Ability to reproduce patterns of
custom waveform.Use soft silicone keys instead of traditional patch
keys, high sensitivity and convenient for operation.The model sold
on this link is VC2060H-60M,The maximum sine wave frequency is
60MHz, and the maximum square wave is 25MHz, 266MSa/s sampling rate
and 14bits vertical resolution.
Completely independent dual channels output, synchronizing
operation and adjustable phase difference.60 groups of arbitrary
wave storage function, memory depth of each group is
2048*14bits.High frequency accuracy and resolution:frequency
accuracy up to 10^(-6) magnitude, total range frequency resolution
is 0.01uHz.High amplitude resolution: the minimum amplitude
resolution can reach 1mV, amplitude range is 2mVpp~20Vpp.
Duty-cycle of each channel can be adjusted independently, the
adjusting resolution is 0.1%.Sweep function: linear sweep and
logarithmic sweep functions; 0.1s-999.9s sweep time; forward,
backward and roundtrip sweep directions.With pulse trains burst
output function: allow the unit output 1~1048575 arbitrary pulse
trains.Measurement functions: can measure signal frequency, cycle,
positive/negative pulse width and duty cycle; 1Hz~100MHz frequency
range.-9.99V~9.99V DC offset range, offset resolution: 0.01V.
With digital signal output function, CMOS output range0~10V.Storage
feature: can store 100 groups of parameters set by the user and
extract at any time.
Counter function: with DC and AC coupling modes
Communication function: the PC can be used to control the
instrument.
With output short-circuit protection: all signal output can work
60s under load short-circuit condition.
| Model | 2015H | 2040H | 2060H |
| Sine Wave Frequency | 0-15MHz | 0-40MHz | 0-60MHz |
| Square/Triangle,Wave Frequency | 0-15MHz |
Puls Wave Frequenc TTL Digital Wave Frequency Arbitrary Wave Frequency | 0-6MHz |
| Puls Width Adjustment | 150nS-4000S | 40nS-4000S | 30nS-4000S |
| Suqare Wave Rise Time | ≤25ns | ≤15ns | ≤15ns |
| Min.Frequency Resolution | 0.01uHz(0.00000001Hz) |
| Frequency Accuracy | ±20ppm |
| Frequency Stability | ±1ppm/3hours |
| Wave Form Features |
| Wave Form Type | Sine/Square/Pulse(adjustable duty cycle,precise adjustment of pulse
width and period) Triangular/Partial Sine/CMOS/DC Level(set DC amplitude by adjusting
offset)/Half/Full Positive Staircase/Anti-ladder/Noise/Exponential
Rise/ExponentialDrop/Multisonic Symplectic Pulse/Lorenz Pulse/60 arbitrary Wave forms |
| Wave Form Length | 2048 points |
| Wave Form Sampling Rate | 266Msa/s |
| Wave Form Vertical Resolution | 14 bits |
| Sine Wave | Harmonic Suppression ≥45dBc (<1MHz)≥40dBc(1MHz-20MHz) Total Harmonic Distortion <0.8%(20Hz-20KHz.0dBm) |
| Square/Pulse Wave | Overshoot ≤5% |
| Pulse Wave | Duty Cycle Adjustment 0.1%-99.9% |
| Output Features |
| Sine Wave Amplitude | Frequency≤10MHz; 2mV-20Vpp 10MHz≥Frequency≤30MHz 2mV-10Vpp Frequency≥30MHz 2mV-5Vpp |
| Square/Triangle | Frequency≤10MHz 2mV-20Vpp |
| Wave Amplitude | 10MHz≥Frequency≤30MHz 2mV-5Vpp |
| Amplitude Resolution | 1mV |
| Amplitude Stability | ±0.5%/5hours |
| Flatness of Amplitude | ±0.5%(<10MHz);±10%(>10MHz) |
| Wave Form Output |
| Output Impedance | 50Ω±10%(Typical) |
| Protection | All signal outputs can work with 60 when the load is short
circuited |
| Offet |
| Offset Adjustment Range | Output amplitude>2V -9.99V~9.99V 0.2V<Output amplitude≤2V -2.5V~2.5V 0<Output amplitude≤0.2V -0.25V~0.25V |
| Offet Resolution | 0.01V |
| Phase |
| Phase Adjustment Range | 0~359.9〫 |
| Phase Resolution | 0.1〫 |
| TTL/CMOS Output |
| Low Level | <0.3V |
| High Level | 1V~10V |
| Level Rise/Fall Time | ≤20ns |
| Measurement |
| Frequency Function | Range 1Hz~100MHz/Gate Time 0.01S~10s continuous adjustment |
| Counter Function | Range: 0-4294967295;DC/AC Coupling Methods;Manual Operation |
| Input Signal Voltage Range | 2vpp~20vpp |
| Pulse Measurement | Resolution 0.01us , Up to 20s |
| Cycle Measurement | Resolution 0.01us , Up to 20s |
| Sweep |
| Sweep Chanel | CH1 or CH2 |
| Sweep Type | Linear Sweep,Logarthmic Sweep |
| Sweep Time | 0.1s~999.9s |
| Setting Range | Any setting between the Max.output frequency of the corresponding
model of the starting point (0.01Hz)and the end point |
| Sweep Direction | Forward/Reverse/Round Trip |
| Trigger |
| Number of Pulses | 1-1048575 |
| Trigger Mode | Manual/CH2/External(AC)/External(DC) |
| General Information |
| Display | 2.4 inch TFT Colore LCD |
| Storage and Load | QTY:100 |
| Postion: 00 to 99 |
| Arbitrary Wave | 1 to 60 (15 groups by default as power on) |
| Interface | Interface Mode : USB to Serial Interface Extension Interface: with TTL level mode serial interface for user
development Communication Speed: Standard 115200bps |
| Power Supply | DC5V±0.5V |
| Product Size | 194mmx178mmx69mm |
| Product Weight | 1.2kg |
| Standard Accessories | USB Cable/Manual/Test Leads(Clip Type)/Test Leads(Plug
Type),Software CD/AC Adaptor |
