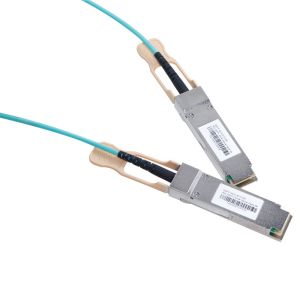

100G QSFP28 to QSFP28 AOC Active Optical Cable 1m, 3m, 5m, 7m, 10m

Description

Miray’s QSFP28-100G-AOC1m series are active optical cables (AOC) that allows bi-directional 100Gbps transmission suitable for high performance computing (HPC) clustering and other high-throughput data network, with advantages such as high speed, high density, low latency, low power consumption and light weight.

Miray supply two kinds of 100G QSFP28 active optical cable: QSFP28 to QSFP28 AOC, QSFP28 to 4*SFP28 AOC. Both of them conform to MSA QSFP28, IEEE802.3, SFF-8431 and other standard protocols. The optical treansceiver mainly used in Ethernet, data center internal network, data center interconnection and other environments

Features

• Quad Small Form-factor Pluggable (QSFP)

• Maximum Aggregate Data Rate 100Gbps

• QSFP28 high density form factor

• EDR, FDR, QDR, DDR, SDR (Infiniband)

• 10/25/40/100G Ethernet

• Bi-directional parallel link

• BER<1e-12 From 0 to 50 degree case temp

• CDR no/off automatically

• 10/14/25/28Gb/s per lane, x4 channels

• Up to 70m (OM3)

• Up to 100m (OM4)

• Low power consumption

• Reliable VCSEL array technology using mulmode fiber

• PIN diode four array

• I2C management interface

• 3.3V power supply voltage

• Maximum 2W power consumption

• Operang case temperature: 0°C to 70°C

• RoHS compliant

Recommended Operating Environment

Electrical Characteristics

Ordering Information

Application

Reliablity Assurance
