| Brand Name : | Mray |
| Model Number : | SFP-GE-BX20-SM1310/1550 |
| Certification : | CE, FCC, RoHs, ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T, Western Union, L/C |
| Supply Ability : | 10000pcs/day |
| Delivery Time : | 1~2 days for samples |

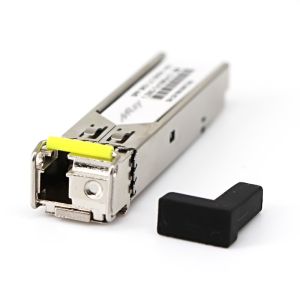

The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 20Km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integratedwith a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safetyrequirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. Forfurther information, please refer to SFP MSA.
| Parameter | Symbol | Min | Typical | Max | Unit |
| Operating Case Temperature | Standard Tc | 0 | 25 | 70 | °C |
| Power Supply Voltage | Vcc | 3.13 | 3.3 | 3.47 | V |
| Power Supply Current | Icc | 300 | mA | ||
| Power Dissipation | PD | 800 | 1200 | mW | |
| Data Rate | DR | 1.25 | Gbps | ||
| Transmission Distance | TD | 20 | km |
Transmitter Specification
| Parameter | Symbol | Min | Typical | Max | Unit | |
| Data Input Swing Differential | VIN | 400 | 1800 | mV | ||
| common mode voltage tolerance | 15 | mV | ||||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | |
| Transmit Disable Input | High | VD | 2.0 | Vcc | V | |
| Low | VEN | VEE | VEE +0.8 | V | ||
| Transmit Enable Output | High | VD | 2.0 | Vcc | V | |
| Low | VEN | VEE | VEE +0.8 | V | ||
| Parameter | Symbol | Min | Typical | Max | Unit | note |
| Centre Wavelength | λc | 1270 | 1580 | nm | ||
| Receiver Sensitivity | Sen | -22 | dBm | 2 | ||
| Receiver Overload | Psat | -3 | dBm | 2 | ||
| LOS De-Assert | LOSD | -24 | dBm | |||
| LOS Assert | LOSA | -35 | dBm | |||
| LOS Hysteresis | 1 | 4 | dB | |||
| Receiver Reflectance | Rrx | -12 | dB |








|   |
